AD7942BRMZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD7942BRMZ
Manufacturer

ADI
ChipWorker Part#

CW1204377
Category

Analog to Digital, ADC IC
Package

MSOP-10
Description

ANALOG DEVICES AD7942BRMZ Analog to Digital Converter, 14Bit, 250KSPS, Single, 2.3V, 5.5V, MSOP
Documentation

Datasheet

AD7942BRMZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD7942BRMZ Specifications

Attribute	Attribute Value

Part Number	AD7942BRMZ
Manufacturer	ADI
ChipWorker Part#	CW1204377
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	MSOP-10
Supply Voltage (DC)	2.30V (min)
Supply Current	1 nA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	10 Position
Number of Bits	14 Bit
Power Dissipation	3.6 mW
Sample Rate	250 ksps
Power Consumption	3.6 mW
Resolution (Bits)	14.0 Bit
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	12.5 mW
Number of Input Channels	1 Channel
Supply Voltage	2.3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.3 V
Input Voltage	5 V
	expand all
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17

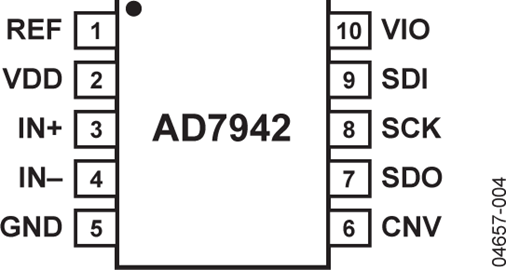

Product Description

Product Details
The AD7942 is a 14-bit, charge redistribution, successive approximation PulSAR® ADC that operates from a single power supply, VDD, between 2.3 V to 5.5 V. It contains a low power, high speed, 14-bit sampling ADC with no missing codes, an internal conversion clock, and a versatile serial interface port. The part also contains a low noise, wide bandwidth, short aperture delay track-and-hold circuit. On the CNV rising edge, it samples an analog input, IN+, between 0 V to VREF with respect to a ground sense, IN−. The reference voltage, VREF, is applied externally and is set up to be the supply voltage. Its power scales linearly with the throughput.
The SPI-compatible serial interface also features the ability, using the SDI input, to daisy-chain several ADCs on a single 3-wire bus and provides an optional busy indicator. It is compatible with 1.8 V, 2.5 V, 3 V, or 5 V logic using a separate supply (VIO).
The AD7942 is housed in a 10-lead MSOP or a 10-lead LFCSP package yet fits in the same size footprint as the 8-lead MSOP or SOT-23. Operation for the AD7942 is specified from −40°C to +85°C.
**Applications**
Battery-powered equipment
Data acquisition
Instrumentation
Medical instruments
Process controls
### Features and Benefits
14-bit resolution with no missing codes
Throughput: 250 kSPS
INL: ±0.4 LSB typical, ±1 LSB maximum (±0.0061% of FSR)
SINAD: 85 dB @ 20 kHz
THD: −100 dB @ 20 kHz
Pseudo differential analog input range
0 V to VREF with VREF up to VDD
No pipeline delay
See Data Sheet for Additional Information
