AD8013ARZ-14 ,Video Amplifier, CATV Amplifier IC - ADI

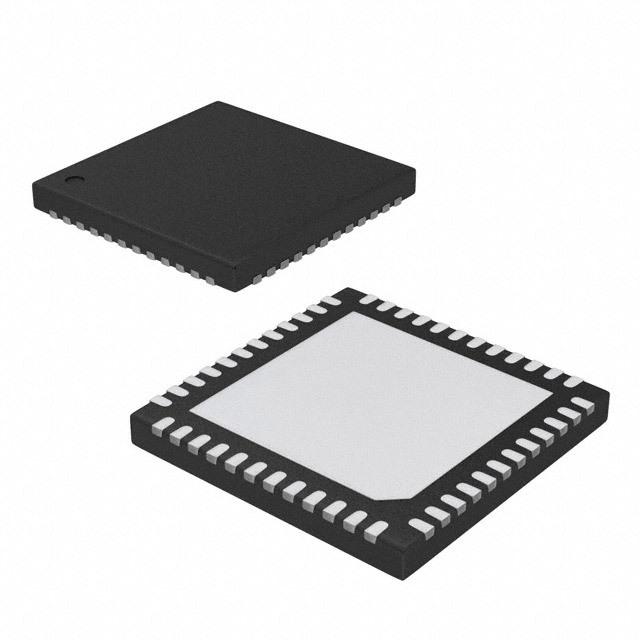

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

193 points

Part No

AD8013ARZ-14
Manufacturer

ADI
ChipWorker Part#

CW1094700
Category

Video Amplifier, CATV Amplifier IC
Package

SOIC-14
Description

ANALOG DEVICES AD8013ARZ-14 Video Amplifier, 3 Amplifiers, 140MHz, 1000V/µs, -40℃, 85℃, 30mA
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 3.6

Buy AD8013ARZ-14

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD8013ARZ-14 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD8013ARZ-14 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD8013ARZ-14
Manufacturer	ADI
ChipWorker Part#	CW1094700
Category	Video Amplifier, CATV Amplifier IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Output Current	30 mA
Supply Current	3.5 mA
Number of Circuits	3 Circuit
Number of Channels	3 Channel
Number of Positions	14 Position
Power Dissipation	1 W
Common Mode Rejection Ratio	52 dB
Quiescent Current	3.00 mA
Input Capacitance	2.00 pF
Slew Rate	1.00 kV/μs
Gain Bandwidth Product	140 MHz
Input Impedance	200 kΩ
Input Offset Voltage	5 mV
Input Bias Current	15000 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	140 MHz
Gain Bandwidth	140 MHz
Power Dissipation (Max)	1000 mW
Minimum CMRR Range	52 dB
Supply Voltage (Max)	13 V
Supply Voltage (Min)	4.2 V
	expand all
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

Product Details
The AD8013 is a low power, single supply, triple video amplifier. Each of the three amplifiers has 30 mA of output current, and is optimized for driving one back terminated video load (150 Ω) each. Each amplifier is a current feedback amp-lifier and features gain flatness of 0.1 dB to 60 MHz while offering differential gain and phase error of 0.02% and 0.06° This makes the AD8013 ideal for broadcast and professional video electronics.
The AD8013 offers low power of 4 mA per amplifier max and runs on a single +5 V to +13 V power supply. The outputs of each amplifier swing to within one volt of either supply rail to easily accommodate video signals. The AD8013 is unique among current feedback op amps by virtue of its large capacitive load drive. Each op amp is capable of driving large capacitive loads while still achieving rapid settling time. For instance it can settle in 18 ns driving a resistive load, and achieves 40 ns (0.1%) settling while driving 200 pF.
The outstanding bandwidth of 150 MHz along with 1000 V/µs of slew rate make the AD8013 useful in many general purpose high speed applications where a single +5 V or dual power supplies up to ±6.5 V are required. Furthermore the AD8013"s high speed disable function can be used to power down the amplifier or to put the output in a high impedance state. This can then be used in video multiplexing applications. The AD8013 is available in the industrial temperature range of -40°C to +85°C.
### Features and Benefits
Three Video Amplifiers in One Package
Drives Large Capacitive Load
Excellent Video Specifications (RL = 150 Ω)
Gain Flatness 0.1 dB to 60 MHz
0.02% Differential Gain Error
0.06° Differential Phase Error
Low Power
Operates on Single +5 V to +13 V Power Supplies
4 mA/Amplifier Max Power Supply Current
High Speed
140 MHz Unity Gain Bandwidth (3 dB)
Fast Settling Time of 18 ns (0.1%)
1000 V/µs Slew Rate
High Speed Disable Function
per Channel
Turn-Off Time 30 ns
Easy to Use
95 mA Short Circuit Current
Output Swing to Within 1 V of Rails
