AD8029ARZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD8029ARZ
Manufacturer

ADI
ChipWorker Part#

CW454204
Category

Operational Amplifier, OP Amp IC
Package

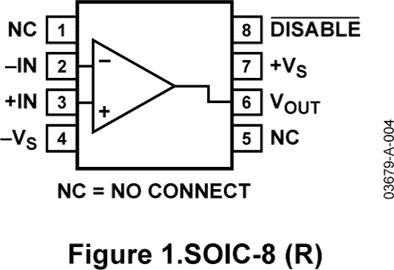

SOIC-8
Description

ANALOG DEVICES AD8029ARZ Operational Amplifier, Single, 1 Amplifier, 125MHz, 63V/µs, 2.7V to 12V, NSOIC, 8Pins
Documentation

Datasheet

AD8029ARZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD8029ARZ Specifications

Attribute	Attribute Value

Part Number	AD8029ARZ
Manufacturer	ADI
ChipWorker Part#	CW454204
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Current	1.4 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	80 dB
Input Capacitance	2.00 pF
Bandwidth	125 MHz
Slew Rate	63.0 V/μs
Gain Bandwidth Product	45 MHz
Input Impedance	6.00 MΩ
Input Offset Voltage	2 mV
Input Bias Current	1.7 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	125 MHz
Minimum CMRR Range	80 dB
Supply Voltage	2.7V ~ 12V
Supply Voltage (Max)	12 V
Supply Voltage (Min)	2.7 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17

Product Description

Product Details
The AD8029 is a single, rail-to-rail input and output high speed amplifier with a quiescent current of only 1.3 mA per amplifier. Despite its low power consumption, the amplifier provides excellent performance with 125MHz small signal bandwidth and 60 V/µs slew rate. ADI"s proprietary XFCB process enables high speed and high performance on low power.
This amplifier exhibits true single-supply operation with rail-to-rail input and output performance for supply voltages ranging from 2.7V to 12V. The input voltage range extends 200 mV beyond each rail without phase reversal. The dynamic range of the output extends to within 40 mV of each rail.
The AD8029 provides excellent signal quality with minimal power dissipation. At G=+1, SFDR is -72dBc at 1MHz and settling time to 0.1% is only 80 ns. Low distortion and fast settling performance makes this amplifier a suitable driver for single-supply A/D converters.
The versatility of the AD8029 allows the user to operate the amplifier on a wide range of supplies while consuming less than 6.5 mW of power. This feature extends the operation time in applications ranging from battery-powered systems with large bandwidth requirements to high speed systems where component density requires lower power dissipation.
The AD8029 is the only low power, rail-to-rail input and output high speed amplifier available in SOT23 and SC70 micro packages. The amplifier is rated over the extended industrial temperature range, -40°C to +125°C.
### Features and Benefits
Low Power
\- 1.3mA supply current/amplifier
Offset voltage: 6 mV max
High Speed
\- 125MHz, -3 dB Bandwidth (G=+1)
\- 60V/µs Slew Rate
\- 80ns Settling Time to 0.1%
Wide Supply Range: 2.7V to 12V
Rail-to-Rail Input and Output
No phase reversal, inputs
200 mV beyond rails
Low input bias current
+0.7µA to -1.5 µA
Small Packaging
\- SOIC-8, SC70-6
