AD829SQ ,Video Amplifier, CATV Amplifier IC - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

156 points

Part No

AD829SQ
Manufacturer

ADI
ChipWorker Part#

CW1487644
Category

Video Amplifier, CATV Amplifier IC
Package

CDIP-8
Description

OP Amp Single GP 18V 8Pin CDIP Tube
Documentation

Datasheet
Ships from

Moscow
Наличие

42099 pcs In Stock
Estimated Price

$ 2.59

Buy AD829SQ

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD829SQ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD829SQ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD829SQ
Manufacturer	ADI
ChipWorker Part#	CW1487644
Category	Video Amplifier, CATV Amplifier IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	CDIP-8
Supply Current	5.3 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Power Dissipation	1.3 W
Common Mode Rejection Ratio	100 dB
Input Capacitance	1.50 pF
Slew Rate	230 V/μs
Gain Bandwidth Product	600 MHz
Input Impedance	13.0 kΩ
Input Offset Voltage	0.5 mV
Input Bias Current	7000 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
3dB Bandwidth	120 MHz
Power Dissipation (Max)	1300 mW
Minimum CMRR Range	100 dB
	expand all
Size-Width	7.87 mm
Size-Height	3.56 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
Mil-Spec	Yes

Similar & Replacement Parts

Similar products

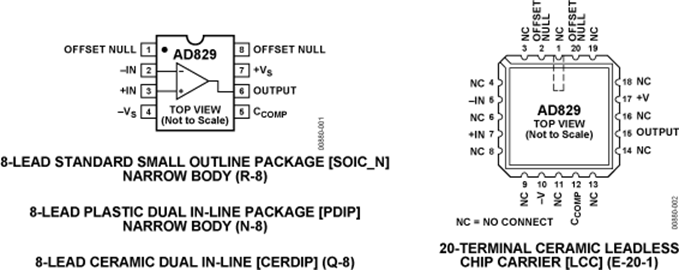

Product Description

Product Details
The AD829 is a low noise (1.7 nV/√Hz), high speed op amp with custom compensation that provides the user with gains of 1 to 20 while maintaining a bandwidth >50 MHz. Its 0.04° differential phase and 0.02% differential gain performance at 3.58 MHz and 4.43 MHz, driving reverse-terminated 50 Ω or 75 Ω cables, makes it ideally suited for professional video applications. The AD829 achieves its 230 V/μs uncompensated slew rate and 750 MHz gain bandwidth while requiring only 5 mA of current from power supplies.
The external compensation pin of the AD829 gives it exceptional versatility. For example, compensation can be selected to optimize the bandwidth for a given load and power supply voltage. As a gain-of-2 line driver, the −3 dB bandwidth can be increased to 95 MHz at the expense of 1 dB of peaking. Its output can also be clamped at its external compensation pin. The AD829 exhibits excellent dc performance. It offers a minimum open-loop gain of 30 V/mV into loads as low as 500 Ω, a low input voltage noise of 1.7 nV/√Hz, and a low input offset voltage of 1 mV maximum. Common-mode rejection and power supply rejection ratios are both 120 dB.
This op amp is also useful in multichannel, high speed data conversion where its fast (90 ns to 0.1%) settling time is important. In such applications, the AD829 serves as an input buffer for 8-bit to 10-bit ADCs and as an output I/V converter for high speed DACs.
Operating as a traditional voltage feedback amplifier, the AD829 provides many of the advantages that a transimpedance amplifier offer. A bandwidth >50 MHz can be maintained for a range of gains through the replacement of the external compensation capacitor. The AD829 and the transimpedance amplifier are both unity-gain stable and provide similar voltage noise performance (1.7 nV/√Hz); however, the current noise of the AD829 (1.5 pA/√Hz) is less than 10% of the noise of transimpedance amplifiers. The inputs of the AD829 are symmetrical.
### Features and Benefits
High Speed
120 MHz bandwidth, gain = −1
230 V/μs slew rate
90 ns settling time to 0.1%
Ideal for video applications
0.02% differential gain
0.04° differential phase
Low noise
1.7 nV/√Hz input voltage noise
1.5 pA/√Hz input current noise
Excellent dc precision
1 mV maximum input offset voltage (over temperature)
0.3 μV/°C input offset drift
Flexible operation
Specified for ±5 V to ±15 V operation
±3 V output swing into a 150 Ω load
External compensation for gains 1 to 20
5 mA supply current
Available in tape and reel in accordance with EIA-481A standard
