AD8418WBRMZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD8418WBRMZ
Manufacturer

ADI
ChipWorker Part#

CW828152
Category

Amplifier, Buffer IC
Package

MSOP-8
Description

ANALOG DEVICES AD8418WBRMZ Current Sense Amplifier, Bidirectional, 1 Amplifier, 130μA, MSOP, 8Pins, -40℃, 125℃
Documentation

Datasheet

AD8418WBRMZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD8418WBRMZ Specifications

Attribute	Attribute Value

Part Number	AD8418WBRMZ
Manufacturer	ADI
ChipWorker Part#	CW828152
Category	Amplifier, Buffer IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Voltage (DC)	2.70V (min)
Output Voltage	5 V
Supply Current	2.6 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	100 dB
Input Capacitance	2.00 pF
Bandwidth	250 kHz
Input Impedance	200 kΩ
Input Offset Voltage	200 µV
Input Bias Current	130 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	250 kHz
Gain Bandwidth	86 dB
Minimum CMRR Range	90 dB
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
Input Voltage	70 V
	expand all
Size-Length	3.2 mm
Size-Width	3.2 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17

Product Description

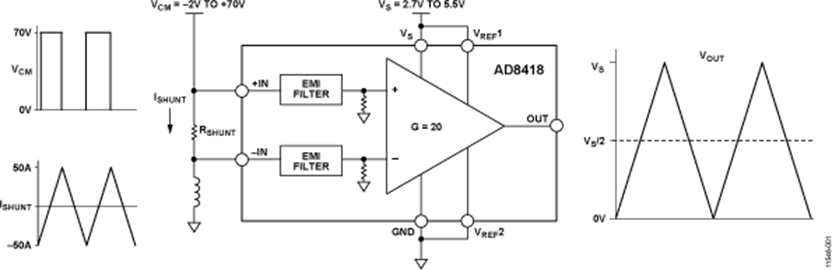

The AD8418WBRMZ is a high voltage high resolution Current Shunt Amplifier features an initial gain of 20V/V, with a maximum ±0.15% gain error over the entire temperature range. The buffered output voltage directly interfaces with any typical converter. The AD8418 offers excellent input common-mode rejection from -2 to +70V. The AD8418 offers breakthrough performance throughout the -40 to +125°C temperature range. It features a zero drift core, which leads to a typical offset drift of 0.1µV/°C throughout the operating temperature range and the common-mode voltage range. The AD8418 is fully qualified for automotive applications and includes EMI filters and patented circuitry to enable output accuracy with pulse-width modulation (PWM) type input common-mode voltages. The typical input offset voltage is ±200µV.
0.1µV/°C Typical offset drift
±400µV Maximum voltage offset over full temperature range
Electromagnetic interference (EMI) filters included
Bidirectional operation
Indefinite output short-circuit duration
0.3V Reverse supply voltage
±2000V ESD human body model (HBM)
