AD9524BCPZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD9524BCPZ
Manufacturer

ADI
ChipWorker Part#

CW812662
Category

Clock Chip, Timing IC
Package

LFCSP EP-48
Description

ANALOG DEVICES AD9524BCPZ Clock Generator, Jitter Cleaner, Parallel, Serial, 1GHz, 3.135-3.465V supply, 14Outputs, LFCSP-48
Documentation

Datasheet

AD9524BCPZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD9524BCPZ Specifications

Attribute	Attribute Value

Part Number	AD9524BCPZ
Manufacturer	ADI
ChipWorker Part#	CW812662
Category	Clock Chip, Timing IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	LFCSP EP-48
Frequency	1 GHz
Supply Voltage (DC)	3.13V (min)
Number of Outputs	14 Output
Supply Current	77.7 mA
Number of Circuits	1 Circuit
Number of Inputs	2 Input
Maximum Duty Cycle	55 %
Fall Time (Max)	0.665 ns
Fall Time (Max)	0.665 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.71V ~ 3.465V
Supply Voltage (Max)	3.465 V
Supply Voltage (Min)	3.135 V
	expand all
Size-Length	7.1 mm
Size-Width	7.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Product Details

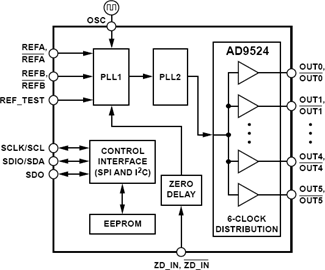

The AD9524 provides a low power, multi-output, clock distribution function with low jitter performance, along with an on-chip PLL and VCO. The on-chip VCO tunes from 3.6 GHz to 4.0 GHz.
The AD9524 is designed to support the clock requirements for long term evolution (LTE) and multicarrier GSM base station designs. It relies on an external VCXO to provide the reference jitter cleanup to achieve the restrictive low phase noise requirements necessary for acceptable data converter SNR performance.
The input receivers, oscillator, and zero delay receiver provide both single-ended and differential operation. When connected to a recovered system reference clock and a VCXO, the device generates six low noise outputs with a range of 1 MHz to 1 GHz, and one dedicated buffered output from the input PLL (PLL1). The frequency and phase of one clock output relative to another clock output can be varied by means of a divider phase select function that serves as a jitter-free coarse timing adjustment in increments that are equal to one-half the period of the signal coming out of the VCO.
An in-package EEPROM can be programmed through the serial interface to store user-defined register settings for power-up and chip reset.
**Applications**
LTE and multicarrier GSM base stations
Wireless and broadband infrastructure
Medical instrumentation
Clocking high speed ADCs, DACs, DDSs, DDCs, DUCs, MxFEs
Low jitter, low phase noise clock distribution
Clock generation and translation for SONET, 10Ge, 10G FC, and other 10 Gbps protocols
Forward error correction (G.710)
High performance wireless transceivers
ATE and high performance instrumentation
### Features and Benefits
Output frequency:
<1 MHz to 1 GHz
Start-up frequency accuracy: <±100 ppm (determined by VCXO reference accuracy)
Zero delay operation
Input-to-output edge timing: <±150 ps
6 outputs: configurable LVPECL, LVDS, HSTL, and LVCMOS
6 dedicated output dividers with jitterless adjustable delay
Adjustable delay: 63 resolution steps of ½ period of VCO output divider
Output-to-output
skew: <±50 ps
Duty-cycle correction for odd divider settings
Automatic synchronization of all outputs on power-up
Nonvolatile EEPROM stores configuration settings
Please see data sheet for additional features
