AD9744ACPZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD9744ACPZ
Manufacturer

ADI
ChipWorker Part#

CW461845
Category

Digital to Analog, DAC IC
Package

LFCSP-32
Description

ANALOG DEVICES AD9744ACPZ Digital to Analog Converter, 14Bit, 210MSPS, Parallel, 2.7V to 3.6V, LFCSP, 32Pins
Documentation

Datasheet

AD9744ACPZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD9744ACPZ Specifications

Attribute	Attribute Value

Part Number	AD9744ACPZ
Manufacturer	ADI
ChipWorker Part#	CW461845
Category	Digital to Analog, DAC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	LFCSP-32
Number of Outputs	1 Output
Supply Current	33.0 mA
Number of Channels	1 Channel
Number of Positions	32 Position
Number of Bits	14 Bit
Power Dissipation	0.145 W
Sample Rate	210 Msps
Resolution (Bits)	14.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	145 mW
Number of DACs	1 DAC
Supply Voltage	2.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	expand all
Size-Length	5 mm
Size-Width	5 mm
Size-Height	0.83 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17

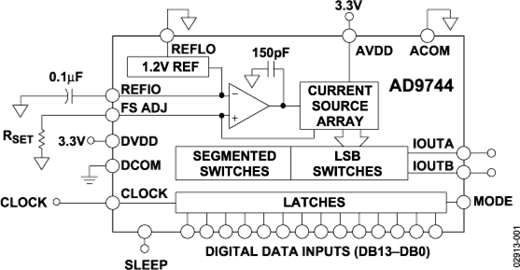

Product Description

Product Details
The AD9744 is the 14-bit member of the new third generation family in the _TxDAC_ product line. This new family includes the AD9744 (14-bit), AD9742 (12-bit), and AD9740 (10-bit) high-speed TxDAC converters with a maximum sampling rate of 210 MSPS. The family is pin-compatible with the previous two generations (AD9764/AD9762/AD9760 and AD9754/AD9752/AD9750) with improved performance and lower power dissipation.
The _TxDAC_ product line is optimized for the transmit signal path of communications systems. All of the devices, including the first two generations, share the same interface options, small outline package and pinout, providing an upward or downward component selection path based on performance, resolution, and cost. The AD974x family has lower power dissipation than previous generations, making all three converters suitable for portable and low power applications.
_TxDAC_ is a registered trademark of Analog Devices.
### Features and Benefits
Pin-Compatible TxDAC Product Family
Industry Standard 28-lead SOIC and TSSOP Packages
SFDR to Nyquist at 20 MHz Output, 165 MSPS: 73 dBc
Twos Complement or Straight Binary Data Format
Power Dissipation: 135 mW at 3.3 V (Power-Down Mode: 15 mW)
On-Chip 1.20 V Reference
