AD9753 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD9753
Manufacturer

ADI
ChipWorker Part#

CW480093830
Description

12Bit, 300MSPS High Speed TxDAC+ D/A Converter
Documentation

Datasheet

AD9753 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD9753 Specifications

Attribute	Attribute Value

Part Number	AD9753
Manufacturer	ADI
ChipWorker Part#	CW480093830
Documentation	Datasheet
	expand all
Product Lifecycle Status	Unknown

Product Description

Product Details

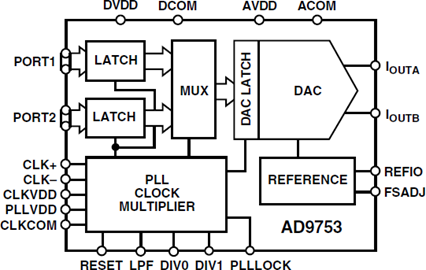

The AD9753 is a dual muxed port, ultra high-speed, single channel,12-bit CMOS DAC. It integrates a high-quality 12-bit TxDAC+ ™ core, a voltage reference, and digital interface circuitry into a small 48-lead LQFP package. The AD9753 offers exceptional AC and DC performance while supporting update rates up to 300MSPS.
### Features and Benefits
12-Bit Dual Muxed Port DAC
300 MSPS Output Update Rate
Excellent SFDR and IMD Performance
SFDR to Nyquist @ 25 MHz Output: 69 dB
Internal Clock Doubling PLL
Differential or Single-Ended Clock Input
On-Chip 1.2 V Reference
Single 3.3 V Supply Operation
Power Dissipation: 155 mW @ 3.3 V
48-Lead LQFP
