AD976AARZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD976AARZ
Manufacturer

ADI
ChipWorker Part#

CW1425763
Category

Analog to Digital, ADC IC
Package

SOIC-28
Description

ANALOG DEVICES AD976AARZ Analog to Digital Converter, 16Bit, 200KSPS, Single, 4.75V, 5.25V, WSOIC
Documentation

Datasheet

AD976AARZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD976AARZ Specifications

Attribute	Attribute Value

Part Number	AD976AARZ
Manufacturer	ADI
ChipWorker Part#	CW1425763
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SOIC-28
Digital Logic Level	SAR
Supply Voltage (DC)	4.75V (min)
Supply Current	11.0 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	28 Position
Number of Bits	16 Bit
Power Dissipation	100 W
Sample Rate	200 ksps
Resolution (Bits)	16.0 Bit
Input Capacitance	22.0 pF
Input Impedance	13.0 kΩ
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	expand all
Size-Length	18.1 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Product Details

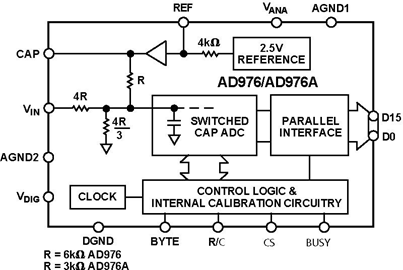

The AD976 and AD976A are high-speed, low-power 16-bit A/D converters with each operating from a single 5 V supply. The AD976A has a throughput rate of 200 ksps whereas the AD976 has a throughput rate of 100 ksps. Each part contains a successive approximation, switched capacitor ADC, an internal 2.5 V reference, and a high-speed parallel interface. The AD976 and AD976A dissipate a maximum of 100 mW. The ADC is factory calibrated to minimize all linearity errors. The analog full-scale input is the standard industrial range of ±10 V.
The AD976 and AD976A are comprehensively tested for ac parameters such as SNR and THD, as well as the more traditional parameters of offset, gain and linearity.
The AD976 and AD976A are fabricated on Analog Devices" proprietary BiCMOS process, which has high performance bipolar devices along with CMOS transistors.
The AD976 and AD976A are available in skinny 28-pin DIP, SSOP and SOIC packages.
### Features and Benefits
Fast 16-Bit ADC
200 kSPS Throughput
Single 5 V Supply Operation
Input Range: ±10 V
100 mW Max Power Dissipation
Choice of External or Internal 2.5 V Reference
High Speed Parallel Interface
On-Chip Clock
28-Lead Skinny DIP, SSOP or SOIC Packages

expand all
