AD9862BSTZ - ADI

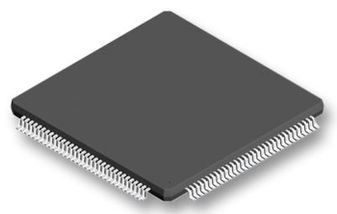

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD9862BSTZ
Manufacturer

ADI
ChipWorker Part#

CW1572336
Category

Specialty Application IC
Package

LQFP-128
Description

ANALOG DEVICES AD9862BSTZ MIXED SIGNAL FRONT END PROCESSOR, 14Bit, LQFP-128
Documentation

Datasheet

AD9862BSTZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD9862BSTZ Specifications

Attribute	Attribute Value

Part Number	AD9862BSTZ
Manufacturer	ADI
ChipWorker Part#	CW1572336
Category	Specialty Application IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	128 Pin
Case/Package	LQFP-128
Frequency	140 MHz
Supply Voltage (DC)	3.90V (max)
Supply Current	104 mA
Number of Positions	128 Position
Power Dissipation	1.42 W
Resolution (Bits)	12.0 Bit
Input Capacitance	5.00 pF
Input Impedance	200 Ω
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	14 mm
Size-Width	20 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	5A991.b.1

Product Description

RF Front End LMDS, MMDS 128-LQFP (14x20)
