Part No

ADAS3022BCPZ
Manufacturer

ADI
ChipWorker Part#

CW633192
Category

Analog to Digital, ADC IC
Package

LFCSP-40
Description

ANALOG DEVICES ADAS3022BCPZ Special Function IC, 8Channel Data Acquisition System, 16Bit, 1MSPS, 4.75V to 5.25V, LFCSP-40
Documentation

Datasheet

ADAS3022BCPZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADAS3022BCPZ Specifications

Attribute	Attribute Value

Part Number	ADAS3022BCPZ
Manufacturer	ADI
ChipWorker Part#	CW633192
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	LFCSP-40
Supply Voltage (DC)	4.75V (min)
Supply Current	18 mA
Number of Channels	1 Channel
Number of Positions	40 Position
Number of Bits	16 Bit
Power Dissipation	2000 W
Sample Rate	1 Msps
Resolution (Bits)	16.0 Bit
Number of ADCs	1 ADC
Number of Inputs	4, 8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2000 mW
Number of DACs	1 DAC
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	expand all
Size-Length	6.1 mm
Size-Width	0.95 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

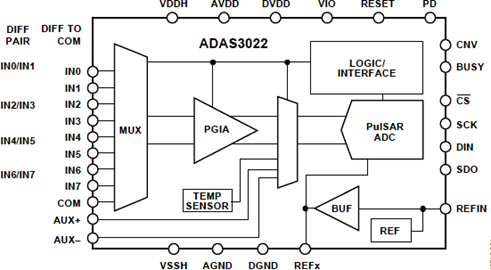

The ADAS3022 series successive approximation-based Analog-to-Digital Data Acquisition System, which is manufactured on proprietary iCMOS® high voltage industrial process technology. The device integrates an 8-channel, low leakage multiplexer, a high impedance programmable gain instrumentation amplifier (PGIA) stage with high common-mode rejection, a precision, low drift 4.096V reference and buffer and a 16-bit charge redistribution analog-to-digital converter (ADC) with successive approximation register (SAR) architecture. In addition, the device can accept the commonly used bipolar differential, bipolar single-ended, pseudo bipolar or pseudo unipolar input signals, as shown in Table 1, thus enabling the use of almost any direct sensor interface. The ADAS3022 simplifies design challenges by eliminating signal buffering, level shifting, amplification/attenuation, common-mode rejection, settling time and any other analog signal conditioning challenge.
Ease of use-16-bit, 1MSPS Complete data acquisition system
>500MR High impedance, 8-channel input
±24.576V maximum Differential input voltage range
>100dB High input common-mode rejection
User-programmable input ranges
Channel sequencer with individual channel gains
On-chip 4.096V Reference and buffer
Auxiliary input-direct interface to PulSAR ADC inputs
No latency or pipeline delay (SAR architecture)
Serial 4-wire, 1.8V to 5V SPI-/SPORT-compatible interface
