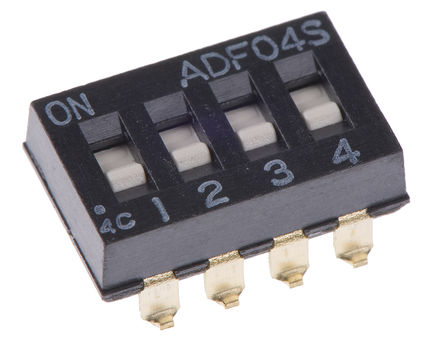

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADF04S04
Manufacturer

TE Connectivity
ChipWorker Part#

CW62593193
Category

DIP Switch, SIP Switch
Description

Switch DIP OFF ON SPST 4 Flush Slide 0.1A 24VDC Gull Wing 2.54mm SMD Tube
Documentation

Datasheet

ADF04S04 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADF04S04 Specifications

Attribute	Attribute Value

Part Number	ADF04S04
Manufacturer	TE Connectivity
ChipWorker Part#	CW62593193
Category	DIP Switch, SIP Switch
Documentation	Datasheet
Mounting Style	Surface Mount
Voltage Rating (DC)	24 V
Current Rating	100 mA
Number of Positions	4 Position
Contact Current Rating	100mA @24VDC
Current Rating (Max)	0.1A @24VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	24 VDC
Voltage Rating (DC Max)	24 V
Maximum Contact Resistance (Max)	50 mΩ
	expand all
Size-Length	12.14 mm
Size-Height	4.5 mm
Contact Material	Copper Alloy
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536509065
ECCN Code	EAR99

Product Description

Use TE Connectivity"s ADF04S04 dual in-line package switch to easily control different electric paths on a printed circuit board. This device has a maximum current rating of 0.1 A @ 24VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The ADF04S04 DIP switch has a gull wing termination style. This product is 12.14 mm long, 4.5 mm tall and 9.3 mm deep. The maximum DC voltage rating is 24 VDC. This product"s terminal pitch is 2.54 mm.
