ADG719BRM - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADG719BRM
Manufacturer

ADI
ChipWorker Part#

CW9737282
Category

Interface IC, Interface Controller
Package

MSOP-8
Description

CMOS 1.8V to 5.5V, 2.5Ω 2:1 Mux/SPDT Switch in SOT-23
Documentation

Datasheet

ADG719BRM Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADG719BRM Specifications

Attribute	Attribute Value

Part Number	ADG719BRM
Manufacturer	ADI
ChipWorker Part#	CW9737282
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Number of Outputs	2 Output
Contacts Type	SPDT
Supply Current	1 nA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Bits	1 Bit
Power Dissipation	0.315 W
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	200 MHz
Power Dissipation (Max)	315 mW
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.8 V
	expand all
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
HK STC License	NLR

Product Description

Product Details

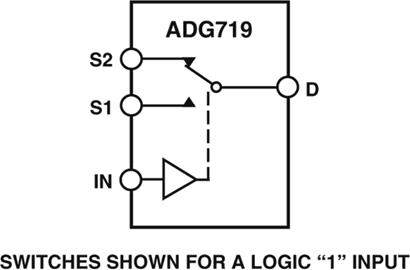

The ADG719 is a monolithic CMOS SPDT switch. This switch is designed on a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents.
The ADG719 can operate from a single-supply range of 1.8 V to 5.5 V, making it ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices, Inc.
Each switch of the ADG719 conducts equally well in both directions when on. The ADG719 exhibits break-before-make switching action.
Because of the advanced submicron process, −3 dB bandwidths of greater than 200 MHz can be achieved.
The ADG719 is available in a 6-lead SOT-23 package and an 8-lead MSOP package.
The ADG719-EP supports Military and Aerospace Applications.
**PRODUCT HIGHLIGHTS**
1. 1.8 V to 5.5 V Single-Supply Operation. The ADG719 offers high performance, including low on resistance and fast switching times, and is fully specified and guaranteed with 3 V and 5 V supply rails.
2. Very Low RON (4 Ω Max at 5 V and 10 Ω Max at 3 V). At 1.8 V operation, RON is typically 40 Ω over the temperature range.
3. Automotive Temperature Range: −40°C to +125°C.
4. On Resistance Flatness (RFLAT(ON)) (0.75 Ω typ).
5. −3 dB Bandwidth > 200 MHz.
6. Low Power Dissipation. CMOS construction ensures low power dissipation.
7. Fast tON/tOFF.
8. Tiny, 6-lead SOT-23 and 8-lead MSOP packages.
**Applications**
Battery Powered Systems
Communication Systems
Sample Hold Systems
Audio Signal Routing
Video Switching
Mechanical Reed Relay Replacement
### Features and Benefits
1.8 V to 5.5 V single supply
4 Ω (max) on resistance
0.75 Ω (Typ) On-Resistance Flatness
-3 dB Bandwidth >200 MHz
Rail-to-Rail Operation
6-Lead SOT-23 package and 8-Lead MSOP package
Fast Switching Times
tON12 ns
tOFF6 ns
Typical Power Consumption (<0.01 µW)
TTL/CMOS Compatible
ADG719-EP supports defense and aerospace applications (AQEC standard)
Download ADG719-EP data sheet (pdf)
MilitaryTemperature Range: −55°C to +125°C
Controlled Manufacturing Baseline
Enhanced Product Change Notification
Qualification data Available on Request
V62/12650 DSCC Drawing Number

expand all
