ADG734BRU - ADI

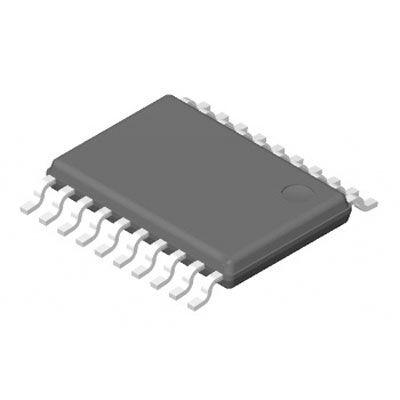

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADG734BRU
Manufacturer

ADI
ChipWorker Part#

CW66180359
Category

Interface IC, Interface Controller
Package

TSSOP-20
Description

Analog Switch Quad Single Pole Double Throw 5.5V 20Pin TSSOP
Documentation

Datasheet

ADG734BRU Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADG734BRU Specifications

Attribute	Attribute Value

Part Number	ADG734BRU
Manufacturer	ADI
ChipWorker Part#	CW66180359
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package (SI)	SOP
Case/Package	TSSOP-20
Number of Outputs	8 Output
Contacts Type	SPDT
Supply Current	1 nA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Bits	4 Bit
Power Dissipation	0.00000001 W
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	200 MHz
	expand all
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	End of Life
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
HK STC License	NLR

Product Description

GENERAL DESCRIPTION
The ADG733 and ADG734 are low voltage, CMOS devices comprising three independently selectable SPDT (single pole, double throw) switches and four independently selectable SPDT switches respectively.
FEATURES
1.8 V to 5.5 V Single Supply
±3 V Dual Supply
2.5Ω On Resistance
0.5Ω On Resistance Flatness
100 pA Leakage Currents
19 ns Switching Times
Triple SPDT: ADG733
Quad SPDT: ADG734
Small TSSOP and QSOP Packages
Low Power Consumption
TTL/CMOS-Compatible Inputs
