ADJ23005 - Panasonic

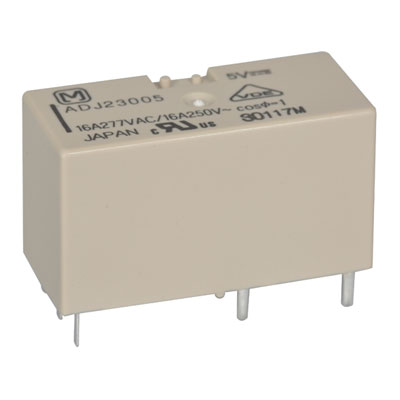

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADJ23005
Manufacturer

Panasonic
ChipWorker Part#

CW40465729
Category

Power Relay
Package

Through Hole
Description

Power Relay 5VDC 16A SPST-NO (( 29mm 13mm 16mm)) Through Hole
Documentation

Datasheet

ADJ23005 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADJ23005 Specifications

Attribute	Attribute Value

Part Number	ADJ23005
Manufacturer	Panasonic
ChipWorker Part#	CW40465729
Category	Power Relay
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	Through Hole
Current Rating	16 A
Power Rating	4 kVA
Contacts Type	SPST-NO
Contact Current Rating	16 A
Coil Voltage	5 VDC
Coil Current	50 mA
Coil Resistance	100 Ω
Current Rating (Max)	16 A
Coil Voltage (DC)	5 V
Coil Power	250 mW
Input Power (Max)	4 KVA
Switching Current (Max)	16 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 VAC
	expand all
Size-Length	29 mm
Size-Width	16 mm
Size-Height	16 mm
Contact Material	Silver Tin Oxide
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536490075
ECCN Code	EAR99

Product Description

16 A, Compact and High Insulation Power Latching Relays
* Compact with high capacity - 16 A contact rating in a compact 29 x 13 x 16.5 mm (L x W x H) size
* Low power consumption - coil latching - 150 mW, coil latching - 250 mW
* High insulation - both clearance and creepage distance between coil and contact are
Latching operation - latching via a polarized magnetic circuit structure allows remote operation and lower energy consumption.
