ADM2795EBRWZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADM2795EBRWZ
Manufacturer

ADI
ChipWorker Part#

CW4879100
Category

Interface IC, Interface Controller
Package

SOIC-16
Description

Single Transmitter/Receiver RS-485/RS-422 16Pin SOIC W Tube
Documentation

Datasheet

ADM2795EBRWZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADM2795EBRWZ Specifications

Attribute	Attribute Value

Part Number	ADM2795EBRWZ
Manufacturer	ADI
ChipWorker Part#	CW4879100
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Output Voltage	5 V
Output Current	250 mA
Number of Positions	16 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.7 V
Input Voltage	1.7V ~ 5.5V, 3V ~ 5.5V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status
ECCN Code	EAR99

Product Description

Product Details

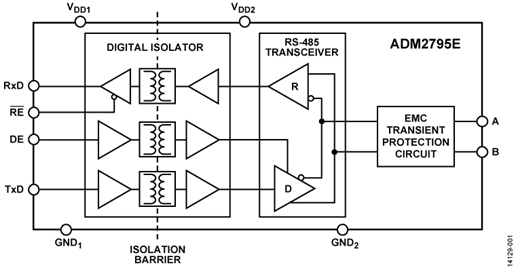

The ADM2795E is a 5 kV rms signal isolated RS-485 transceiver that features up to ±42 V of ac/dc peak bus overvoltage fault protection on the RS-485 bus pins. The device integrates Analog Devices, Inc., iCoupler® technology to combine a 3-channel isolator, RS-485 transceiver, and IEC electromagnetic compatibility (EMC) transient protection in a single package. The ADM2795E is a RS-485/RS-422 transceiver that integrates IEC 61000-4-5 Level 4 surge protection, allowing up to ±4 kV protection on the RS-485 bus pins (A and B). The device has IEC 61000-4-4 Level 4 EFT protection up to ±2 kV and IEC 61000-4-2 Level 4 ESD protection on the bus pins, allowing this device to withstand up to ±15 kV on the transceiver interface pins without latching up. This device has an extended common-mode input range of ±25 V to improve data communication reliability in noisy environments. The ADM2795E is capable of operating over wide power supply ranges, with a 1.7 V to 5.5 V VDD1 power supply range, allowing interfacing to low voltage logic supplies. The ADM2795E is also fully TIA/EIA RS-485/RS-422 compliant when operated over a 3 V to 5.5 V VDD2 power supply. The device is fully characterized over an extended operating temperature range of −40°C to +125°C, and is available in a 16-lead, wide-body SOIC package.
**Applications**
Heating, ventilation, and air conditioning (HVAC) networks
Industrial field buses
Building automation
Utility networks
### Features and Benefits
5 kV rms isolated RS-485/RS-422 transceiver
±42 V ac/dc peak fault protection on RS-485 bus pins
Certified Level 4 EMC protection on RS-485 A, B bus pins
IEC 61000-4-5 surge protection (±4 kV)
IEC 61000-4-4 electrical fast transient (EFT) protection (±2 kV)
IEC 61000-4-2 electrostatic discharge (ESD) protection
IEC 61000-4-6 conducted radio frequency (RF) immunity (10 V/m rms)
See data sheet for additional features
ADM2795E-EP supports defense and aerospace applications (AQEC standard)
Download ADM2795E-EP data sheet (pdf)
Military −55°C to +125°C temperature range
Controlled manufacturing baseline
1 assembly/test site
Enhanced product change notification
Qualification data available on request
V62/17611 DSCC Drawing Number
