ADR425ARMZ - ADI

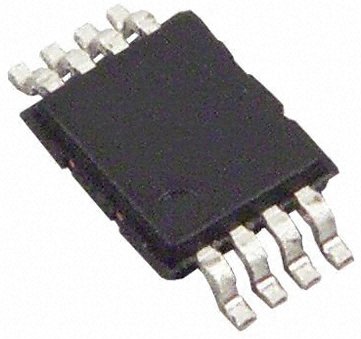

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADR425ARMZ
Manufacturer

ADI
ChipWorker Part#

CW685840
Category

Voltage Reference
Package

MSOP-8
Description

Voltage Reference Precision 5V 10mA 8Pin MSOP
Documentation

Datasheet

ADR425ARMZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADR425ARMZ Specifications

Attribute	Attribute Value

Part Number	ADR425ARMZ
Manufacturer	ADI
ChipWorker Part#	CW685840
Category	Voltage Reference
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Capacitance Tolerance	±0.12 %
Input Voltage (DC)	18.0V (max)
Output Voltage	5 V
Output Current	10 mA
Supply Current	600 µA
Number of Channels	1 Channel
Number of Positions	8 Position
Input Voltage (Max)	18 V
Input Voltage (Min)	7 V
Output Voltage (Max)	5.006 V
Output Voltage (Min)	5 V
Output Current (Max)	10 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.12 %
Input Voltage	7V ~ 18V
	expand all
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 125℃
Temperature Coefficient	±2 ppm/℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Even in the event of large power supply variations, this ADR425ARMZ voltage reference power management device from Analog Devices can produce and maintain a precise DC voltage. By working with a maximum input voltage of 18 V, this is the best way to control the power in your circuit. With an output that has a voltage of 5 V, this is power management at its best. It has an initial accuracy of 0.13%. This voltage reference circuit supports series topology. Maintain a constant voltage level with a load regulation of 70ppm/mA and line regulation of 35ppm/V. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It runs with a maximum temperature coefficient of 10ppm/°C. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 125 °C.
