ADS131E08IPAGR - TI

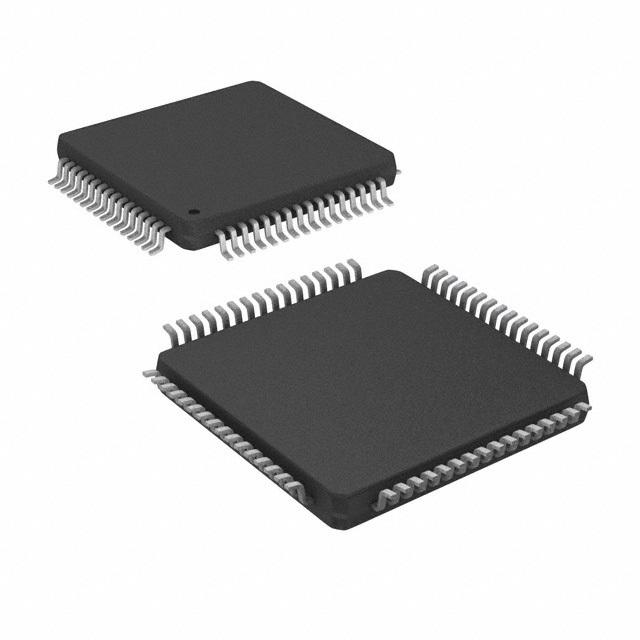

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADS131E08IPAGR
Manufacturer

TI
ChipWorker Part#

CW9468121
Category

Analog to Digital, ADC IC
Package

TQFP-64
Description

AFE General Purpose 8ADC 24Bit 2.5V/3V/3.3V 64Pin TQFP T/R
Documentation

Datasheet

ADS131E08IPAGR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADS131E08IPAGR Specifications

Attribute	Attribute Value

Part Number	ADS131E08IPAGR
Manufacturer	TI
ChipWorker Part#	CW9468121
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	TQFP-64
Power Rating	17.6 mW
Number of Circuits	8 Circuit
Number of Channels	8 Channel
Number of Positions	64 Position
Number of Bits	16, 24 Bit
Power Dissipation	17.6 W
Power Consumption	6.00 mW
Number of ADCs	8 ADC
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	17.6 mW
Number of Input Channels	8 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	2.7 V
	expand all
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

DESCRIPTION
The ADS131E0x are a family of multichannel, simultaneous sampling, 24- and 16-bit, delta-sigma
(ΔΣ), analog-to-digital converters (ADCs) with a built in programmable gain amplifier (PGA), internal reference, and an onboard oscillator.
The ADS131E0x incorporate features commonly required in industrial power monitoring, control, and protection applications. The ADS131E0x inputs can be independently and directly interfaced with a resistor-divider network or a transformer to measure voltage. The inputs can also be interfaced to a current transformer or Rogowski coil to measure current. With high integration levels and exceptional performance, the ADS131E0x family enables the creation of scalable industrial power systems at significantly reduced size, power, and low overall cost.
FEATURES
• Eight Differential Current and Voltage Inputs
• Outstanding Performance:
– Exceeds Class 0.1 Performance
– Dynamic Range at 1 kSPS: 118 dB
– Crosstalk: –110 dB
– THD: –90 dB at 50 Hz and 60 Hz
• Supply Range:
– Analog:
– +3 V to +5 V (Unipolar)
– ±2.5 V (Bipolar, allows dc coupling)
– Digital: +1.8 V to +3.6 V
• Low Power: 2 mW per Channel
• Data Rates: 1, 2, 4, 8, 16, 32, and 64 kSPS
• Programmable Gains (1, 2, 4, 8, and 12)
• Fault Detection and Device Testing Capability
• SPI™ Data Interface and Four GPIOs
• Package: TQFP-64 (PAG)
• Operating Temperature Range: –40°C to +105°C

expand all
