ADS42LB49IRGC25 - TI

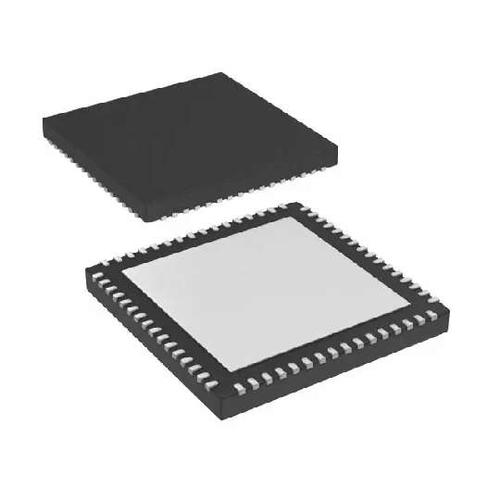

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADS42LB49IRGC25
Manufacturer

TI
ChipWorker Part#

CW96225971
Category

Analog to Digital, ADC IC
Package

VQFN-64
Description

Dual-Channel, 14Bit, 250MSPS Analog-to-Digital Converter (ADC) 64-VQFN -40℃ to 85℃
Documentation

Datasheet

ADS42LB49IRGC25 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADS42LB49IRGC25 Specifications

Attribute	Attribute Value

Part Number	ADS42LB49IRGC25
Manufacturer	TI
ChipWorker Part#	CW96225971
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	VQFN-64
Supply Voltage (DC)	1.70V (min)
Supply Current	141 mA
Number of Positions	64 Position
Number of Bits	14 Bit
Power Dissipation	1.64 W
Sample Rate	250 Msps
Power Consumption	1.64 W
Number of ADCs	2 ADC
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1.85 W
Number of Input Channels	2 Channel
Supply Voltage (Max)	1.9 V
Supply Voltage (Min)	1.7 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

14 Bit Analog to Digital Converter 2 Input 2 Pipelined 64-VQFN (9x9)
