ADS5281IRGCT - TI

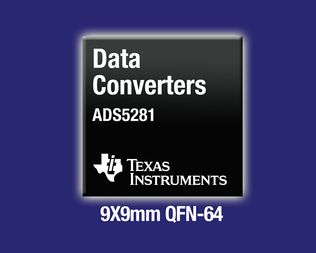

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoADS5281IRGCT
-
ManufacturerTI
-
ChipWorker Part#CW38204264
-
CategoryAnalog to Digital, ADC IC
-
PackageVQFN-64
-
DescriptionEight-Channel, 12Bit, 50MSPS Analog-to-Digital Converter (ADC) 64-VQFN -40℃ to 85℃
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
ADS5281IRGCT Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
ADS5281IRGCT Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | ADS5281IRGCT |
| Manufacturer | TI |
| ChipWorker Part# | CW38204264 |
| Category | Analog to Digital, ADC IC |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | VQFN-64 |
| Supply Voltage (DC) | 3.00V (min) |
| Supply Current | 119 mA |
| Number of Circuits | 8 Circuit |
| Number of Channels | 8 Channel |
| Number of Positions | 64 Position |
| Number of Bits | 12 Bit |
| Power Dissipation | 530 mW |
| Sample Rate | 50 Msps |
| Power Consumption | 512 mW |
| Number of ADCs | 8 ADC |
| Number of Inputs | 8 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 649.5 mW |
| Number of Input Channels | 8 Channel |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| expand all | |
| Size-Length | 9 mm |
| Size-Width | 9 mm |
| Size-Height | 0.88 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
Product Description
- The ADS5281IRGCT is a 8-channel Analog-to-digital Converter (ADC) with serialized low-voltage differential signalling (LVDS) outputs and a wide variety of programmable features. The high-performance, low-power ADC is highly customizable for a diversity of applications and offers an unprecedented level of system integration.
- Speed and resolution grades
- Low-frequency noise suppression mode
- External and internal (trimmed) reference
- Single-ended or differential clock - Clock duty cycle correction circuit (DCC)
- Serialized DDR LVDS output
- Programmable LVDS current drive, internal termination
- Test patterns for enabling output capture
- Straight offset binary or twos complement output
- Green product and no Sb/Br
