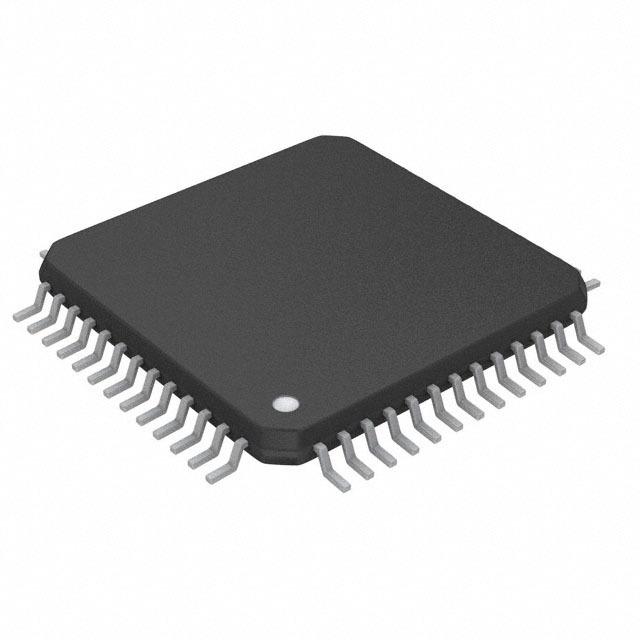

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADS5400IPZP
Manufacturer

TI
ChipWorker Part#

CW36339763
Category

Analog to Digital, ADC IC
Package

HTQFP-100
Description

Analog to Digital Converters - ADC 12B 1000MSPS ADC
Documentation

Datasheet

ADS5400IPZP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADS5400IPZP Specifications

Attribute	Attribute Value

Part Number	ADS5400IPZP
Manufacturer	TI
ChipWorker Part#	CW36339763
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	HTQFP-100
Supply Voltage (DC)	3.13V (min)
Supply Current	234 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Bits	12 Bit
Power Dissipation	2280 mW
Power Consumption	2.2 W
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2450 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	3.135 V
Input Voltage	5 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	3A001A5A3

Product Description

The ADS5400 device is a 12-bit, 1-GSPS analog-to-digital converter (ADC) that operates from both a 5-V supply and 3.3-V supply, while providing LVDS-compatible digital outputs. The analog input buffer isolates the internal switching of the track and hold from disturbing the signal source. The simple 3-stage pipeline provides extremely low latency for time critical applications. Designed for the conversion of signals up to 2 GHz of input frequency at 1 GSPS, the ADS5400 has outstanding low noise performance and spurious-free dynamic range over a large input frequency range.
The ADS5400 is available in a HTQFP-100 PowerPAD™ package. The combination of the PowerPAD package and moderate power consumption of the ADS5400 allows for operation without an external heatsink. The ADS5400 is built on Texas Instrument"s complementary bipolar process (BiCom3) and is specified over the full industrial temperature range (40°C to 85°C).
