ADS803E - TI

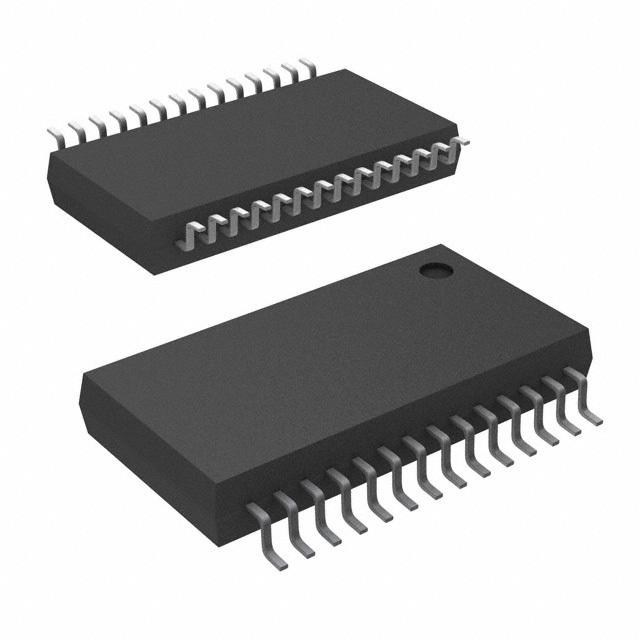

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ADS803E
Manufacturer

TI
ChipWorker Part#

CW30092196
Category

Analog to Digital, ADC IC
Package

SSOP-28
Description

12Bit, 5MSPS Analog-to-Digital Converter (ADC) 28-SSOP -40℃ to 85℃
Documentation

Datasheet

ADS803E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ADS803E Specifications

Attribute	Attribute Value

Part Number	ADS803E
Manufacturer	TI
ChipWorker Part#	CW30092196
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SSOP-28
Supply Voltage (DC)	4.70V (min)
Supply Current	23.0 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	28 Position
Number of Bits	12 Bit
Power Dissipation	115 mW
Sample Rate	5 Msps
Power Consumption	115 mW
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	135 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	5.3 V
Supply Voltage (Min)	4.7 V
Input Voltage	3.5V, 5V
	expand all
Size-Length	10.2 mm
Size-Width	5.3 mm
Size-Height	1.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR

Product Description

The ADS803 is a high-speed, high dynamic range, 12-bit pipelined Analog-to-Digital (A/D) converter. This converter includes a high-bandwidth track-and-hold that gives excellent spurious performance up to and beyond the Nyquist rate. This high-bandwidth, linear track-and-hold minimizes harmonics and has low jitter, leading to excellent SNR performance. The ADS803 is also pin-compatible with the 10MHz ADS804 and the 20MHz ADS805.
The ADS803 provides an internal reference and can be programmed for a 2Vp-p input range for the best spurious performance and ease of driving. Alternatively, the 5Vp-p input range can be used for the lowest input referred noise of 0.09LSBs rms giving superior imaging performance. There is also a capability to set the input range in between the 2Vp-p and 5Vp-p input ranges or to use an external reference. The ADS803 also provides an over-range indicator flag to indicate an input range that exceeds the full-scale input range of the converter. This flag can be used to reduce the gain of the front-end gain-ranging circuitry.
The ADS803 employs digital error-correction techniques to provide excellent differential linearity for demanding imaging applications. Its low distortion and high SNR give the extra margin needed for communications, medical imaging, video, and test instrumentation applications. The ADS803 is available in an SSOP-28 package.
