AMC1200BDWV ,Isolation Amplifier IC - TI

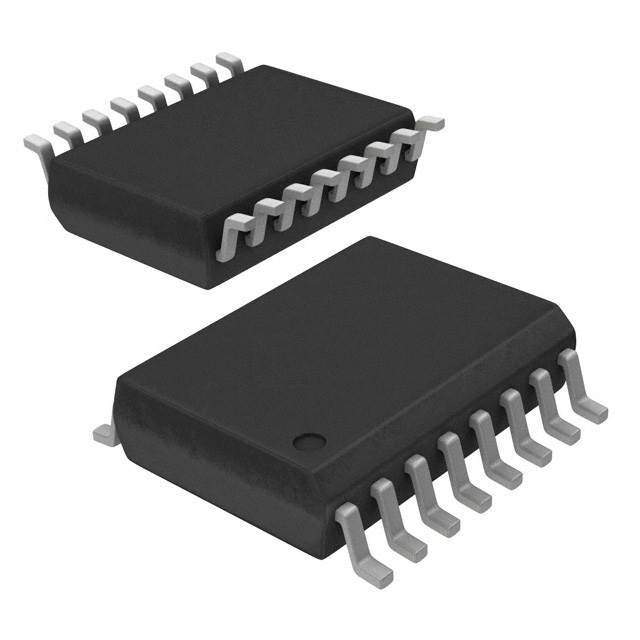

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

132 points

Part No

AMC1200BDWV
Manufacturer

TI
ChipWorker Part#

CW1072793
Category

Isolation Amplifier IC
Package

SOIC-8
Description

Isolation Amplifier, 1 Amplifier, 0.2mV, 4.25kV, 2.7V to 5.5V, SOIC, 8Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 4.64

Buy AMC1200BDWV

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AMC1200BDWV Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AMC1200BDWV Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AMC1200BDWV
Manufacturer	TI
ChipWorker Part#	CW1072793
Category	Isolation Amplifier IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Current	5.4 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	0.044 W
Common Mode Rejection Ratio	95 dB
Bandwidth	100 kHz
Isolation Voltage	4.25 kV
Input Offset Voltage	200 µV
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	100 kHz
Power Dissipation (Max)	44 mW
Minimum CMRR Range	95 dB
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5V ~ 7V
Supply Voltage (Min)	2.7V, 4.5V
	expand all
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

The AMC1200BDWV is a precision isolation Amplifier with an output separated from the input circuitry by a silicon dioxide (SiO2) barrier that is highly resistant to magnetic interference. This barrier has been certified to provide galvanic isolation of up to 4250VPEAK according to UL1577 and VDE V 0884-10. Used in conjunction with isolated power supplies, this device prevent noise currents on a high common mode voltage line from entering the local ground and interfering with or damaging sensitive circuitry. The input of the amplifier is optimized for direct connection to shunt resistors or other low voltage level signal sources. The excellent performance of the device supports accurate current control resulting in system-level power saving and especially in motor-control applications, lower torque ripple. The common mode voltage of the output signal is automatically adjusted to either the 3V or 5V low-side supply.
±250mV Input voltage range optimized for shunt resistors
0.075% Maximum at 5V Very low nonlinearity
1.5mV Maximum low offset error
3.1mVRMS Typical low noise
10kV/µs Minimum transient immunity
Green product and no Sb/Br
