AO4421 - Alpha & Omega Semiconductor

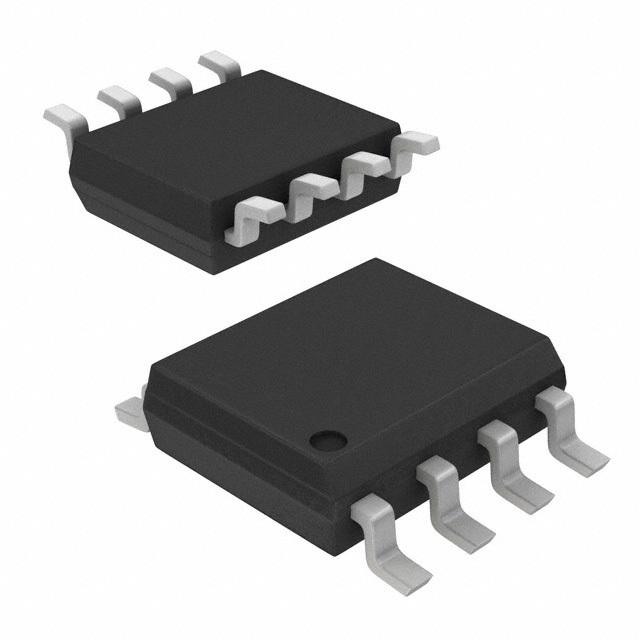

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AO4421
Manufacturer

Alpha & Omega Semiconductor
ChipWorker Part#

CW3216466
Category

MOSFET, MOSFET Transistor
Package

SOIC-8
Description

SOIC P-CH 60V 6.2A
Documentation

Datasheet

AO4421 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AO4421 Specifications

Attribute	Attribute Value

Part Number	AO4421
Manufacturer	Alpha & Omega Semiconductor
ChipWorker Part#	CW3216466
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	2 W
Polarity	P-CH
Power Dissipation	3.1 W
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	6.2A
Input Capacitance (Ciss)	2900pF @30V(Vds)
Input Power (Max)	3.1 W
Power Dissipation (Max)	3.1W (Ta)
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

P-Channel 60V 6.2A (Ta) 3.1W (Ta) Surface Mount 8-SOIC
