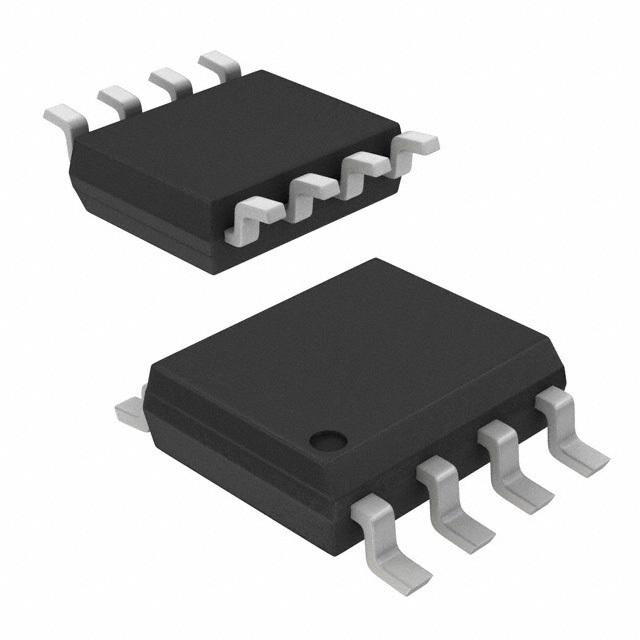

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AO4611
Manufacturer

Alpha & Omega Semiconductor
ChipWorker Part#

CW12517127
Category

MOSFET, MOSFET Transistor
Package

SOIC-8
Description

SOIC N+P 60V 6.3A/4.9A
Documentation

Datasheet

AO4611 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AO4611 Specifications

Attribute	Attribute Value

Part Number	AO4611
Manufacturer	Alpha & Omega Semiconductor
ChipWorker Part#	CW12517127
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	1.28 W
Polarity	N+P
Power Dissipation	2 W
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	6.3A/4.9A
Rise Time	5 ns
Input Capacitance (Ciss)	2300pF @30V(Vds)
Input Power (Max)	2 W
Fall Time	5.5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2 W
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

General Description
The AO4611 uses advanced trench technology MOSFETs to provide excellent RDS(ON) and low gate charge. The complementary MOSFETs may be used to form a level shifted high side switch, and for a host of other applications.
Product Summary
N-Channel P-Channel
VDS(V) = 60V -60V
ID = 6.3A (VGS=10V) -4.9A
RDS(ON)
< 25mΩ(VGS=10V) < 42mΩ(VGS= -10V)
< 30mΩ(VGS=4.5V) < 52mΩ(VGS= -4.5V)
100% UIS Tested 100% UIS Tested
100% Rg Tested 100% Rg Tested
