AO4806 - Alpha & Omega Semiconductor

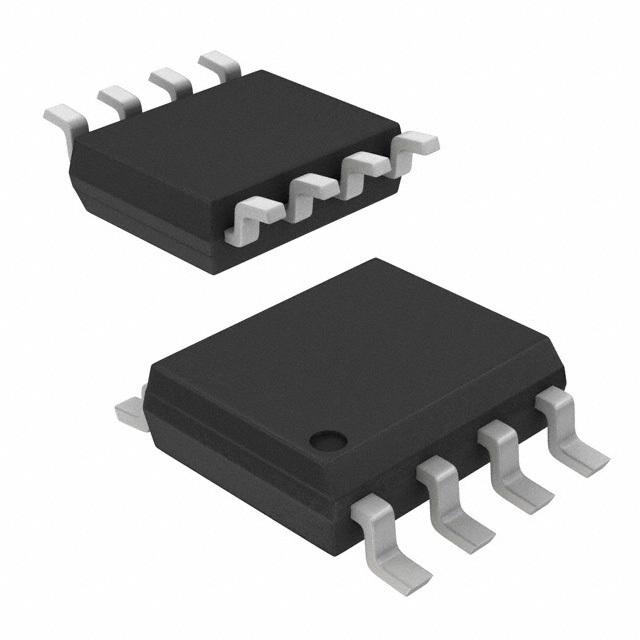

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AO4806
Manufacturer

Alpha & Omega Semiconductor
ChipWorker Part#

CW6164285
Category

MOSFET, MOSFET Transistor
Package

SOIC-8
Description

SOIC N-CH 20V 9.4A
Documentation

Datasheet

AO4806 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AO4806 Specifications

Attribute	Attribute Value

Part Number	AO4806
Manufacturer	Alpha & Omega Semiconductor
ChipWorker Part#	CW6164285
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	SOIC-8
Power Rating	1.28 W
Polarity	N-CH
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	9.4A
Input Capacitance (Ciss)	1810pF @10V(Vds)
Input Power (Max)	2 W
Power Dissipation (Max)	2 W
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

General Description
The AO4806 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. They offer operation over a wide gate drive range from 1.8V to 12V. It is ESD protected. This device is suitable for use as a uni-directional or bi-directional load switch, facilitated by its common-drain configuration.
Standard Product AO4806 is Pb-free (meets ROHS & Sony 259 specifications). AO4806L is a Green Product ordering option. AO4806 and AO4806L are electrically identical.
Features
• VDS (V) = 20V
• ID = 9.4A (VGS = 10V)
• RDS(ON) < 14mΩ (VGS = 10V)
• RDS(ON) < 15mΩ (VGS = 4.5V)
• RDS(ON) < 21mΩ (VGS = 2.5V)
• RDS(ON) < 30mΩ (VGS = 1.8V)
• ESD Rating: 2000V HBM
