AOD450 - Alpha & Omega Semiconductor

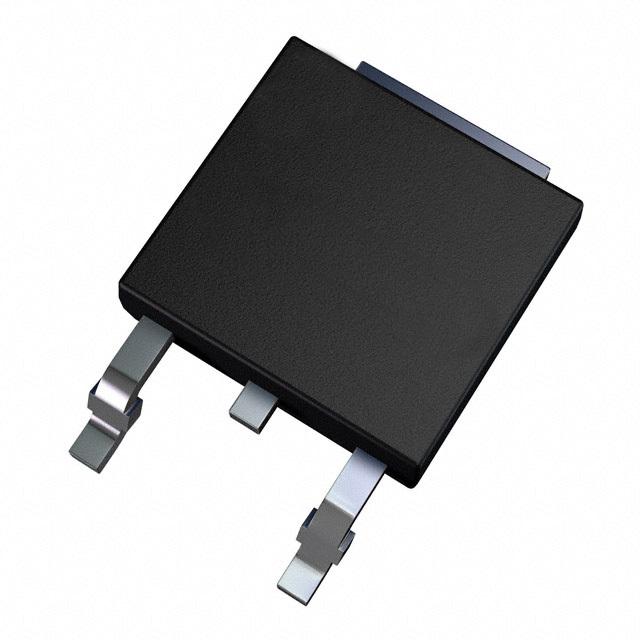

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AOD450
Manufacturer

Alpha & Omega Semiconductor
ChipWorker Part#

CW5611025
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

DPAK N-CH 200V 3.8A
Documentation

Datasheet

AOD450 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AOD450 Specifications

Attribute	Attribute Value

Part Number	AOD450
Manufacturer	Alpha & Omega Semiconductor
ChipWorker Part#	CW5611025
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Polarity	N-CH
Power Dissipation	2.1 W
Drain to Source Voltage (Vds)	200 V
Continuous Drain Current (Ids)	3.8A
Rise Time	3.3 ns
Input Capacitance (Ciss)	215pF @25V(Vds)
Input Power (Max)	2.1 W
Fall Time	2.8 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.1W (Ta), 25W (Tc)
	expand all
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR

Product Description

General Description
The AOD450 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. This device is suitable for use in inverter, load switching and general purpose applications.
-RoHS Compliant
-Halogen Free
Features
VDS (V) = 200V
ID = 3.8A (VGS = 10V)
RDS(ON) <0.7Ω (VGS = 10V)
100% UIS Tested!
100% Rg Tested!

expand all
