AON6435 - Alpha & Omega Semiconductor

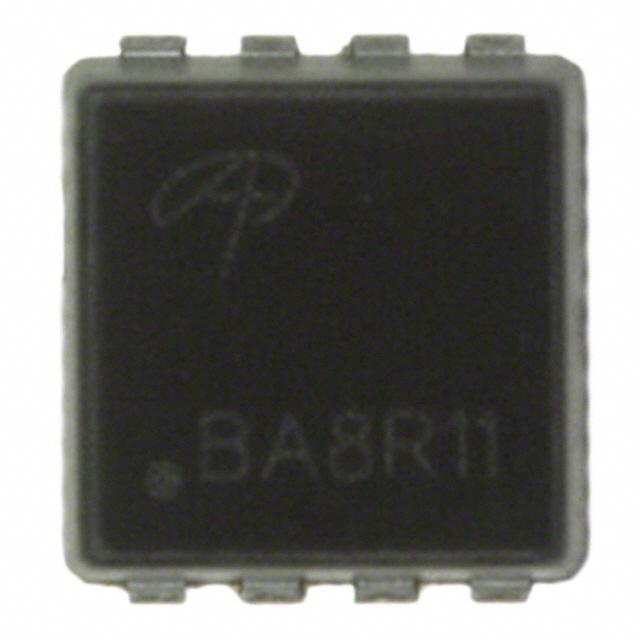

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AON6435
Manufacturer

Alpha & Omega Semiconductor
ChipWorker Part#

CW27753596
Category

MOSFET, MOSFET Transistor
Package

DFN-8
Description

DFN P-CH 30V 34A
Documentation

Datasheet

AON6435 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AON6435 Specifications

Attribute	Attribute Value

Part Number	AON6435
Manufacturer	Alpha & Omega Semiconductor
ChipWorker Part#	CW27753596
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DFN-8
Power Rating	12.5 W
Polarity	P-CH
Power Dissipation	4.1W (Ta), 31W (Tc)
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	34A
Rise Time	8 ns
Input Capacitance (Ciss)	1400pF @15V(Vds)
Input Power (Max)	4.1 W
Fall Time	7 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	4.1W (Ta), 31W (Tc)
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

P-Channel 30V 12A (Ta), 34A (Tc) 4.1W (Ta), 31W (Tc) Surface Mount 8-DFN (5x6)
