AOZ1034DI - Alpha & Omega Semiconductor

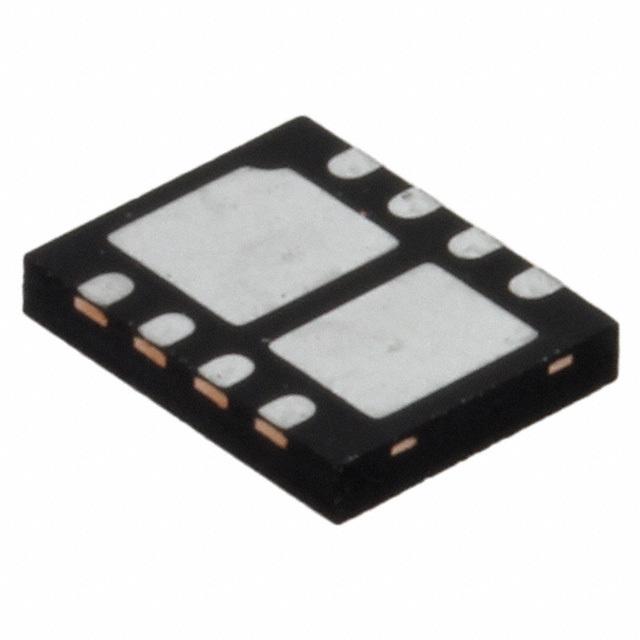

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AOZ1034DI
Manufacturer

Alpha & Omega Semiconductor
ChipWorker Part#

CW20880327
Category

DC to DC Converter
Package

PowerVDFN-8
Description

Conv DC-DC 4.5V to 18V Step Down Single-Out 0.8V to 18V 4A 8Pin DFN EP
Documentation

Datasheet

AOZ1034DI Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AOZ1034DI Specifications

Attribute	Attribute Value

Part Number	AOZ1034DI
Manufacturer	Alpha & Omega Semiconductor
ChipWorker Part#	CW20880327
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerVDFN-8
Frequency	0.5 MHz
Number of Outputs	1 Output
Output Voltage	0.8V ~ 18V
Output Current	4 A
Switching Frequency	500 kHz
Input Voltage (Max)	18 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	18 V
Output Voltage (Min)	0.8 V
Input Voltage	4.5V ~ 18V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

General Description
The AOZ1034 is a synchronous high efficiency, simple to use, 4A buck regulator. The AOZ1034 works from a 4.5V to 18V input voltage range, and provides up to 4A of continuous output current with an output voltage adjustable down to 0.8V. The AOZ1034 comes in both a 5x4 DFN-8 and an exposed pad SO-8 package and is rated over a -40°C to +85°C ambient temperature range.
Features
• 4.5V to 18V operating input voltage range
• Synchronous rectification: 60mΩinternal high-side switch and 20mΩInternal low-side switch
• High efficiency: up to 95%
• Internal soft start
• Output voltage adjustable to 0.8V
• 4A continuous output current
• Fixed 500kHz PWM operation
• Cycle-by-cycle current limit
• Pre-bias start-up
• Short-circuit protection
• Thermal shutdown
• Thermally enhanced 5x4 DFN-8 and exposed pad SO-8 packages
