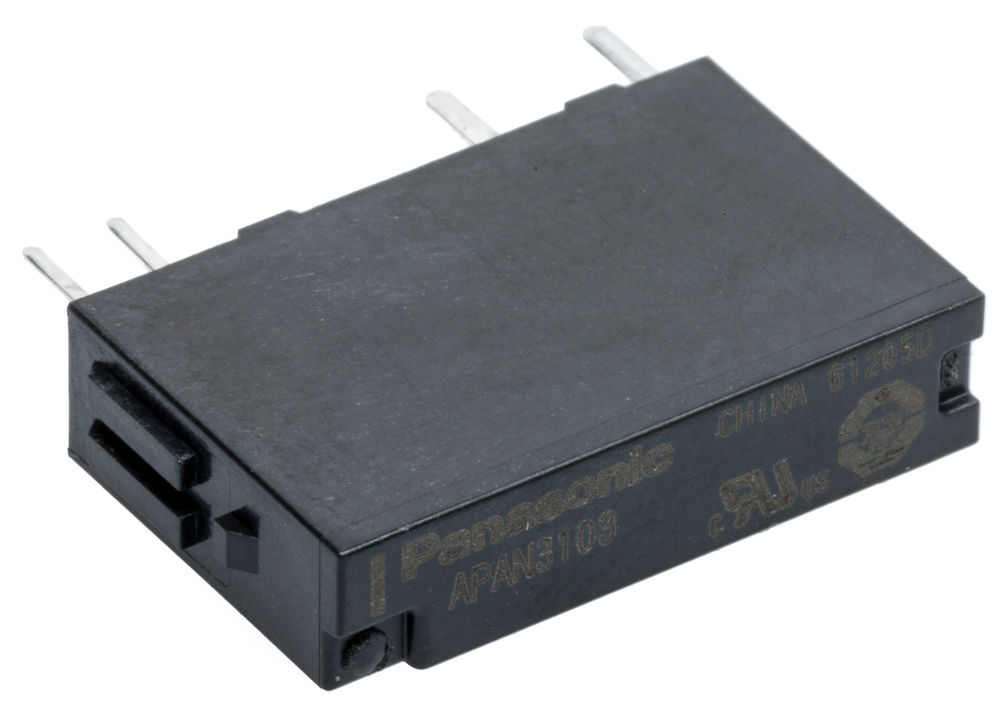

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

APAN3105
Manufacturer

Panasonic
ChipWorker Part#

CW27814
Category

Power Relay
Description

Relay: electromagnetic; SPST-NO; Ucoil:5VDC; 5A/30VAC; 5A/250VDC
Documentation

Datasheet

APAN3105 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

APAN3105 Specifications

Attribute	Attribute Value

Part Number	APAN3105
Manufacturer	Panasonic
ChipWorker Part#	CW27814
Category	Power Relay
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Current Rating	5 A
Insulation Resistance	1000 MΩ
Contacts Type	SPST-NO
Contact Current Rating	5 A
Coil Voltage	5 VDC
Coil Current	22 mA
Coil Resistance	227 Ω
Coil Voltage (DC)	5 V
Coil Power	110 mW
Switching Current (Max)	5 A
Operating Temperature (Max)	90 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	30 VDC
Voltage Rating (DC Max)	110 V
Voltage Rating (AC Max)	250 V
Maximum Contact Resistance (Max)	30 mΩ
	expand all
Size-Length	20 mm
Size-Width	5 mm
Size-Height	12.5 mm
Contact Material	Silver Nickel, Gold
Operating Temperature	-40℃ ~ 90℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536694040
ECCN Code	EAR99

Product Description

Power Relay 5VDC 5A SPST-NO(21x5x12.8)mm THT
