APHB1608CGKSURKC - Kingbright

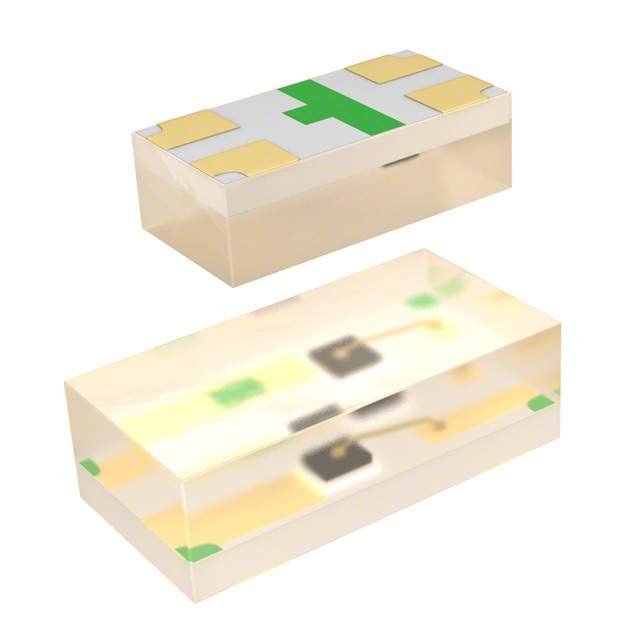

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

APHB1608CGKSURKC
Manufacturer

Kingbright
ChipWorker Part#

CW57287007
Category

Based LED
Package

0603
Description

LED Bi-Color Green/Red 574nm/645nm Chip LED 2Pin SMD T/R
Documentation

Datasheet

APHB1608CGKSURKC Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

APHB1608CGKSURKC Specifications

Attribute	Attribute Value

Part Number	APHB1608CGKSURKC
Manufacturer	Kingbright
ChipWorker Part#	CW57287007
Category	Based LED
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package (SI)	1608
Case/Package	0603
Forward Voltage	2.5 V
Wavelength	570nm Green,630nm Red
Viewing Angle	130°
Peak Wavelength	574 nm, 650 nm
Power Dissipation	75 W
Test Current	20 mA
Forward Current	30 mA
Maximum Forward Voltage (Max)	2.5 V
Forward Current (Max)	30 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	75 mW
	expand all
Size-Length	1.6 mm
Size-Width	0.8 mm
Size-Height	0.65 mm
Color	Green, Red
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Green, Red 570nm Green, 630nm Red LED Indication - Discrete 2.1V Green, 1.95V Red 0603 (1608 Metric)
