APT60D60BG - Microsemi

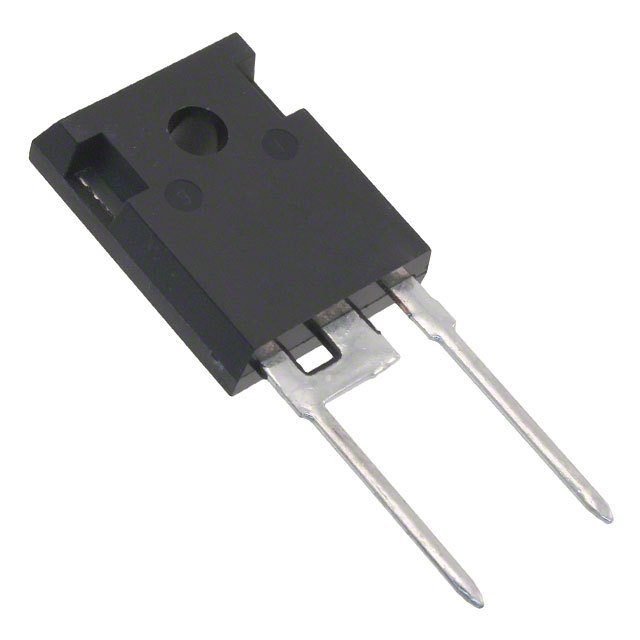

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

APT60D60BG
Manufacturer

Microsemi
ChipWorker Part#

CW68898696
Category

TVS Diode
Package

TO-247-2
Description

Diode Switching 600V 60A 2Pin(2+Tab) TO-247
Documentation

Datasheet

APT60D60BG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

APT60D60BG Specifications

Attribute	Attribute Value

Part Number	APT60D60BG
Manufacturer	Microsemi
ChipWorker Part#	CW68898696
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-247-2
Voltage Rating (DC)	600 V
Current Rating	60.0 A
Output Current	≤60.0 A
Forward Voltage	1.8V @60A
Polarity	Standard
Reverse recovery time	130 ns
Forward Current	60 A
Maximum Forward Voltage (Max)	1.8V @60A
Forward Current (Max)	60000 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	55 ℃
	expand all
Size-Length	21.46 mm
Size-Width	16.26 mm
Size-Height	5.31 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
