ATV12HU15M2 - Schneider Electric

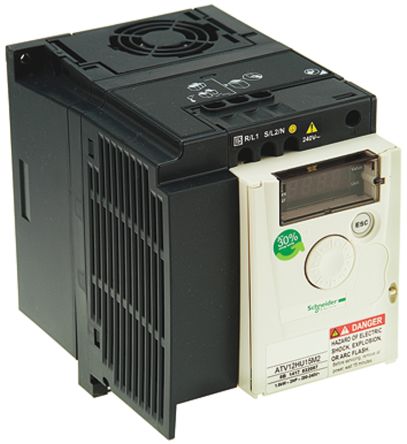

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ATV12HU15M2
Manufacturer

Schneider Electric
ChipWorker Part#

CW45649332
Category

Motors, Drive
Package

200
Description

Frequency converter ALTIVAR ATV12 1.5kW, 200. . 0.24VAC Single phase, ATV12HU15M2, Schneider Electric
Documentation

Datasheet

ATV12HU15M2 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ATV12HU15M2 Specifications

Attribute	Attribute Value

Part Number	ATV12HU15M2
Manufacturer	Schneider Electric
ChipWorker Part#	CW45649332
Category	Motors, Drive
Documentation	Datasheet
Case/Package	200
Supply Voltage (DC)	230V (max)
Current Rating	7.5 A
Power Rating	1.5 kW
Output Voltage	≤230 V
Output Current	7.50 A
Output Voltage (Max)	240 V
Output Current (Max)	7.5 A
Voltage Rating	230 V
Supply Voltage	230 V
Supply Voltage (Max)	240 VAC
Supply Voltage (Min)	200 VAC
	expand all
Size-Length	143 mm
Size-Width	105 mm
Size-Height	142 mm
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The ATV12HU15M2 is a variable speed AC Motor Drive with the advanced functions for increased productivity. It comes with the easy communication with all other machine components via integrated universal Modbus serial link. Smaller footprint, notably in terms of the depth of equipment, as the baseplate mounted version dissipates heat into the machine frame. The factory settings, which provide a high quality drive from the very first time the power is turned on. It features high dynamic performance on acceleration as well as on braking, excellent speed regulation on machine load surges and reduced noise and maintenance. The drive can be configured before it is received (by the distributor), during storage (by the storekeeper) or during fitting before the electrical enclosure is powered up for the first time. No adjustment is required and there is a quick start guide for immediate setup.
Easy access to all the wiring and settings on the front panel
Modbus Communication port protocol
RTU for Modbus transmission frame
Up to 70% of nominal motor torque without braking resistor
Adjustable preset in factory motor slip compensation
Electrical insulation between power and control
Green premium product
