ATV212HD11N4 - Schneider Electric

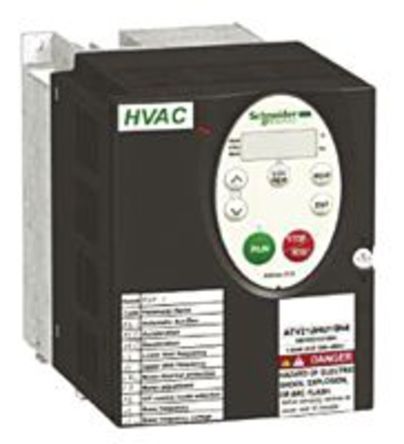

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ATV212HD11N4
Manufacturer

Schneider Electric
ChipWorker Part#

CW92256517
Category

Motors, Drive
Description

Schneider Electric ALTIVAR 212Inverter Drive 11kW with EMC Filter, 3-Phase In, 380 480V, 21.1A
Documentation

Datasheet

ATV212HD11N4 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ATV212HD11N4 Specifications

Attribute	Attribute Value

Part Number	ATV212HD11N4
Manufacturer	Schneider Electric
ChipWorker Part#	CW92256517
Category	Motors, Drive
Documentation	Datasheet
Mounting Style	Panel
Frequency	0.5Hz ~ 200Hz
Current Rating	21.1 A
Power Rating	11 kW
Output Current	22.5 A
Supply Voltage	400 V
Supply Voltage (Max)	480 VAC
Supply Voltage (Min)	380 VAC
	expand all
Size-Length	180 mm
Size-Width	170 mm
Product Lifecycle Status	Active
RoHS	RoHS Compliant

Product Description

The ATV212HD11N4 is a 3-phase Variable Speed AC Motor Driver. The Altivar 212 drive is intended for use with three-phase asynchronous motors for variable torque pump and fan applications. Includes 3 logic inputs, 2 analog inputs, 1 analog output and 2 relay outputs (with 1NO and 1NO/NC contacts), integrated 4 digit, 7 segment LED display with 7 button keypad, as well as RJ45 Modbus™ port, plus a 4 screw removable terminal block for software selectable BACnet, Modbus, METASYS N2 or APOGEE P1 communication protocols. Due to its eco-energy based design, energy savings of up to 70% can be achieved compared to a traditional control system.
147m³/h Fan flow rate
430W Power dissipation
IP21 Protection rating
-10 to 40°C Operating temperature

expand all
