AUIR3314STRL - Infineon

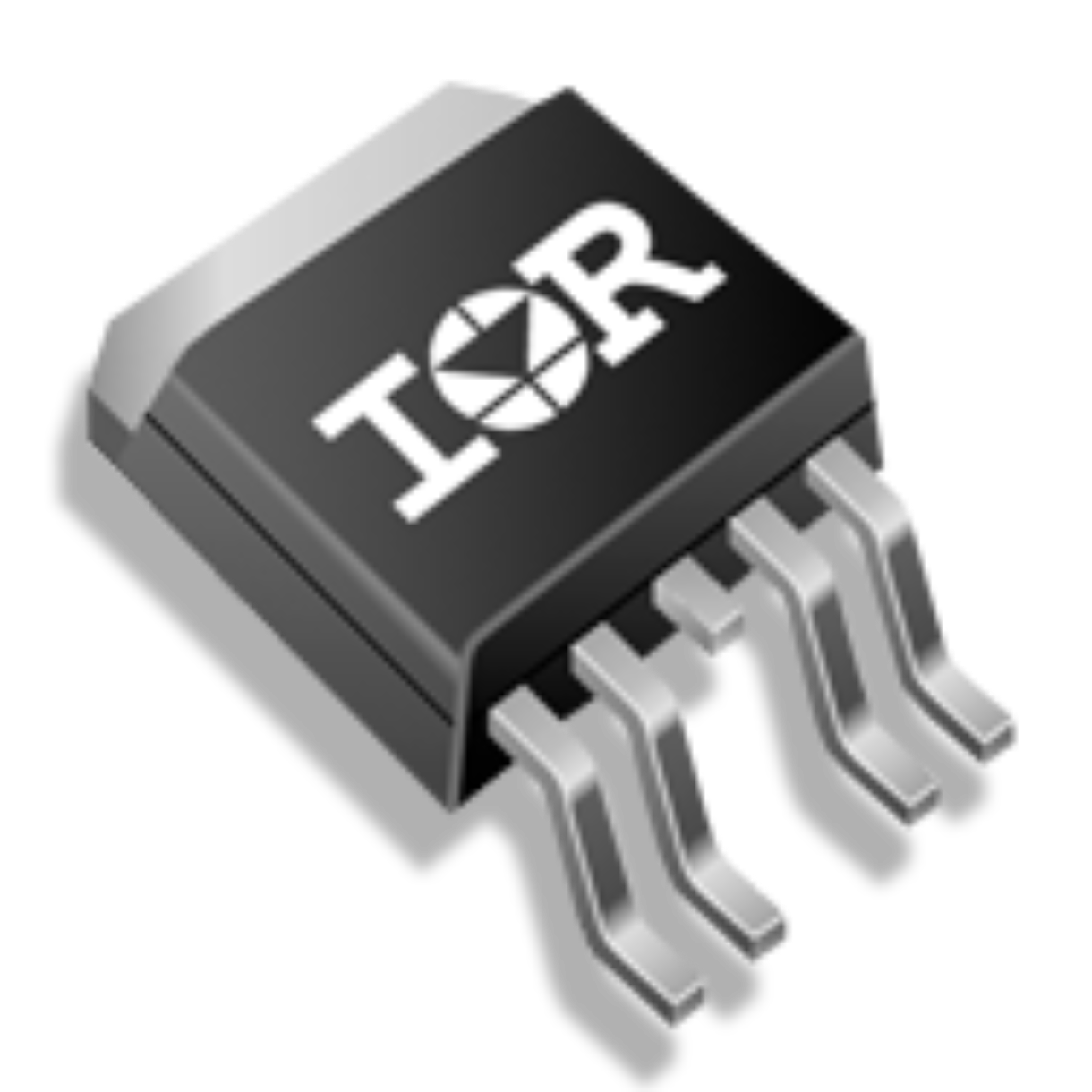

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AUIR3314STRL
Manufacturer

Infineon
ChipWorker Part#

CW7780828
Category

Switching Power Supply, Power Switch
Package

TO-263-5
Description

Power Switch Hi Side 1Out 18A 0.0095Ω Automotive 5Pin(4+Tab) D2PAK T/R
Documentation

Datasheet

AUIR3314STRL Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AUIR3314STRL Specifications

Attribute	Attribute Value

Part Number	AUIR3314STRL
Manufacturer	Infineon
ChipWorker Part#	CW7780828
Category	Switching Power Supply, Power Switch
Documentation	Datasheet
Number of Pins	5 Pin
Case/Package	TO-263-5
Number of Outputs	1 Output
Output Current	18 A
Number of Positions	5 Position
Power Dissipation	2 W
Rise Time	70 µs
Input Voltage (Min)	6 V
Output Current (Max)	18 A
Number of Inputs	1 Input
Fall Time	55 µs
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2000 mW
Input Voltage	32 V
	expand all
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	PB free
ECCN Code	EAR99

Product Description

Benefits:
Short-circuit protection
Over-temperature protection
Charge pump
vCurrent sense feedback
Digital Diagnostic
Active gate control for lower EMI
Programmable over current shutdown
Active clamp
ESD protection
Input referenced to Vcc
Reverse battery protection
