AUIRFS4115 - Infineon

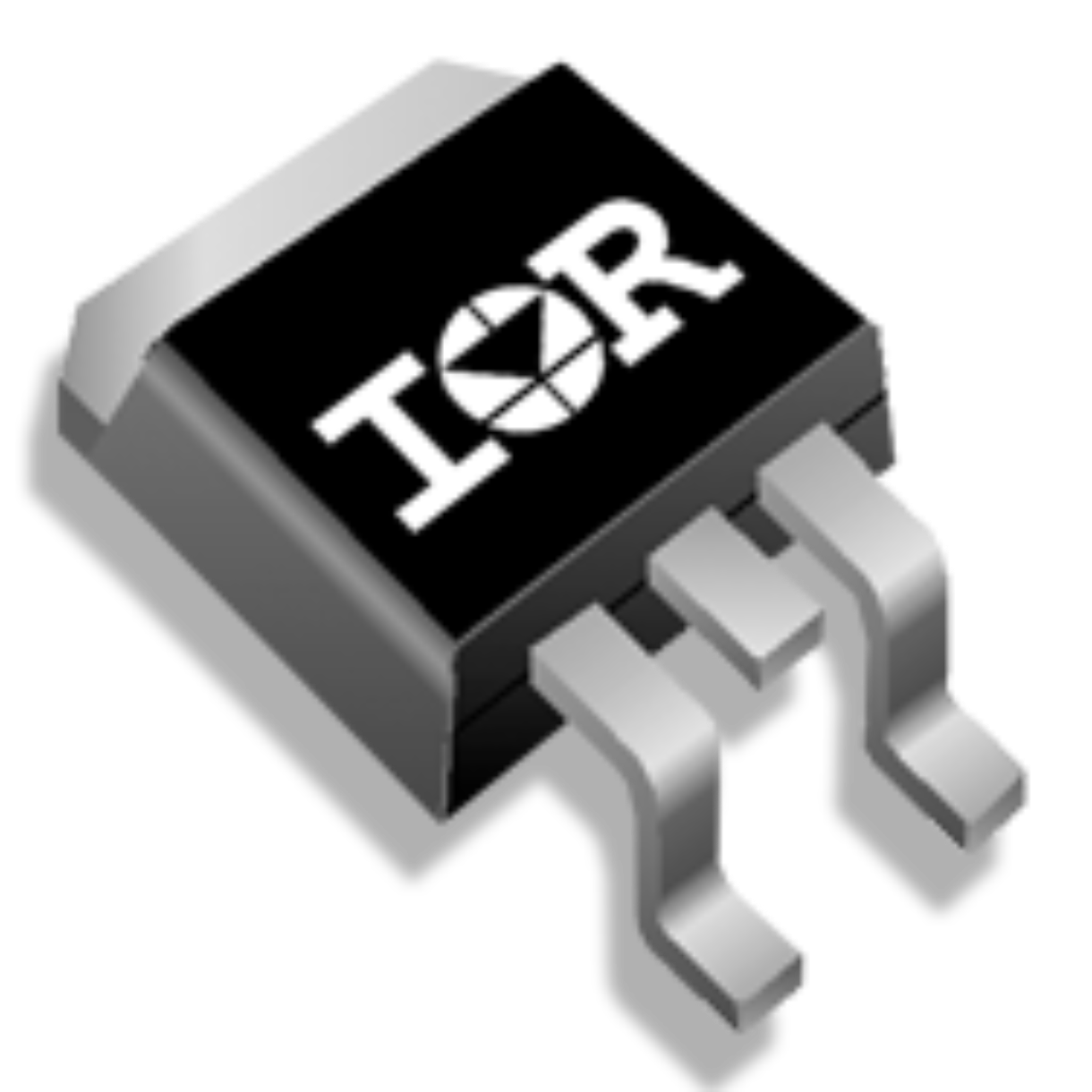

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AUIRFS4115
Manufacturer

Infineon
ChipWorker Part#

CW90708512
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

D2PAK N-CH 150V 99A
Documentation

Datasheet

AUIRFS4115 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AUIRFS4115 Specifications

Attribute	Attribute Value

Part Number	AUIRFS4115
Manufacturer	Infineon
ChipWorker Part#	CW90708512
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	12.1 mΩ
Polarity	N-CH
Power Dissipation	375 W
Threshold Voltage	3 V
Drain to Source Voltage (Vds)	150 V
Breakdown Voltage (Drain to Source)	150 V
Continuous Drain Current (Ids)	99A
Rise Time	73 ns
Input Capacitance (Ciss)	5270pF @50V(Vds)
Fall Time	39 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	375W (Tc)
	expand all
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Material	Silicon
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status

Product Description

N-Channel 150V 99A (Tc) 375W (Tc) Surface Mount D2PAK
