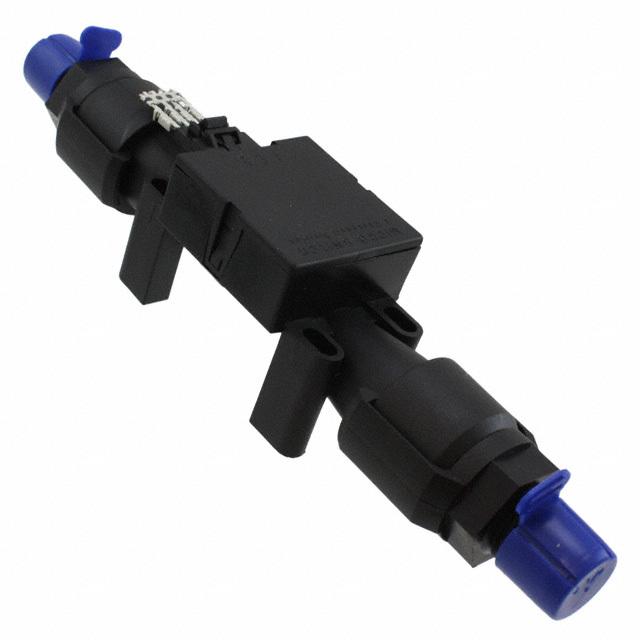

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoAWM5101VN
-
ManufacturerHoneywell
-
ChipWorker Part#CW979871
-
CategoryFlow Sensor
-
DescriptionAirflow Sensor 5 LITERS/MIN 1/4 NPT THREAD 1-5VDC LINEAR 4Pin CONNECTOR USES AMP CONNECTOR 103956-3 TO CONNECT
-
DocumentationDatasheet
