AXT426124 - Panasonic

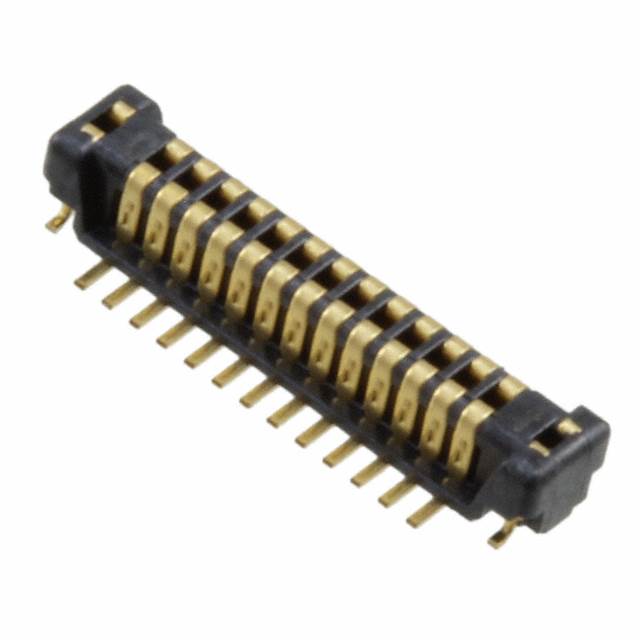

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AXT426124
Manufacturer

Panasonic
ChipWorker Part#

CW36458731
Category

Board to Board Connector, Mezzanine Connector
Description

CONN HEADER FPC 0.4MM 26POS SMD
Documentation

Datasheet

AXT426124 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AXT426124 Specifications

Attribute	Attribute Value

Part Number	AXT426124
Manufacturer	Panasonic
ChipWorker Part#	CW36458731
Category	Board to Board Connector, Mezzanine Connector
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	26 Pin
Number of Contacts	26 Contact
Current Rating	300 mA
Insulation Resistance	1000 MΩ
Number of Rows	2 Row
Number of Positions	26 Position
Number of Mating Cycles	50 Cycle
Current Rating (Max)	5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	60 V
Maximum Contact Resistance (Max)	90 mΩ
	expand all
Size-Height	1.24 mm
Contact Material	Copper Alloy
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

CONN HEADER FPC .4MM 26POS SMD
