B78108S1105J - Epcos
The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoB78108S1105J
-
ManufacturerEpcos
-
ChipWorker Part#CW70704575
-
CategoryInductor
-
PackageAxial
-

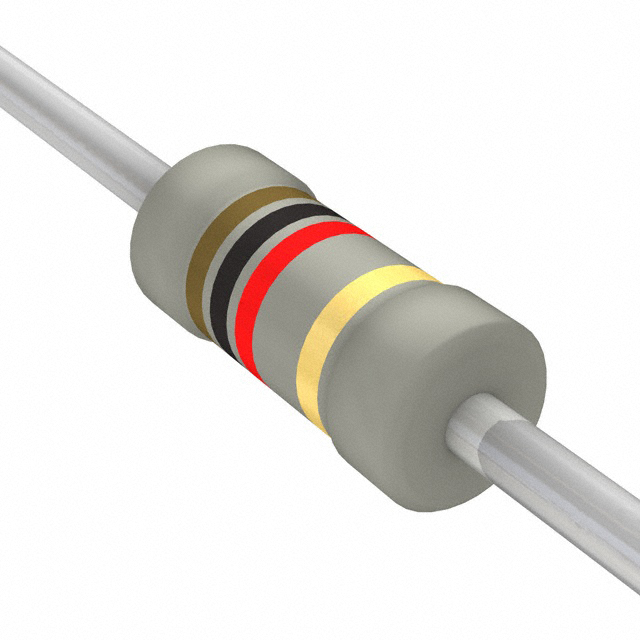

DescriptionRF Choke Drum Core 1mH 5% 100kHz 50Q-Factor Ferrite 130mA 14Ω DCR AXL T/R
-
