B82144A2105J000 - Epcos

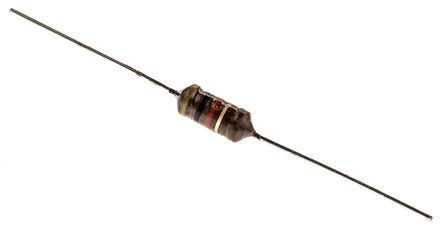

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

B82144A2105J000
Manufacturer

Epcos
ChipWorker Part#

CW3627673
Category

Inductor
Description

RF Choke Drum Core 1mH 5% 100kHz 60Q-Factor Ferrite 200mA 3.8Ω DCR AXL Automotive T/R
Documentation

Datasheet

B82144A2105J000 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

B82144A2105J000 Specifications

Attribute	Attribute Value

Part Number	B82144A2105J000
Manufacturer	Epcos
ChipWorker Part#	CW3627673
Category	Inductor
Documentation	Datasheet
Mounting Style	Axial
Number of Pins	2 Pin
Current Rating	200 mA
Capacitance Tolerance	±5 %
Inductance	1 mH
Self Resonant Frequency	1.2 MHz
Q-Factor	60.0
Inductance Tolerance	±5 %
Test Frequency	0.1 MHz
DC Resistance (DCR)	3.8 Ω
Current Rating (DC)	200 mA
Resistance (DC Max)	3.8 Ω
	expand all
Size-Length	14.8 mm
Size-Diameter	5.20 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

**Epcos B82144A LBC Series Axial Inductors**
Epcos B82144A LBC series RF chokes are suitable for use in telecommunications (12- or16-kHZ blocking filter), automotive electronics, energy saving lamps and entertainment electronics. They can also be used for RF blocking and filtering and decoupling and interference suppression. These inductors consist of a large ferrite drum core with enamel copper wire winding and a flame retardant lacquer coating.
