B82721K2701N20 - Epcos

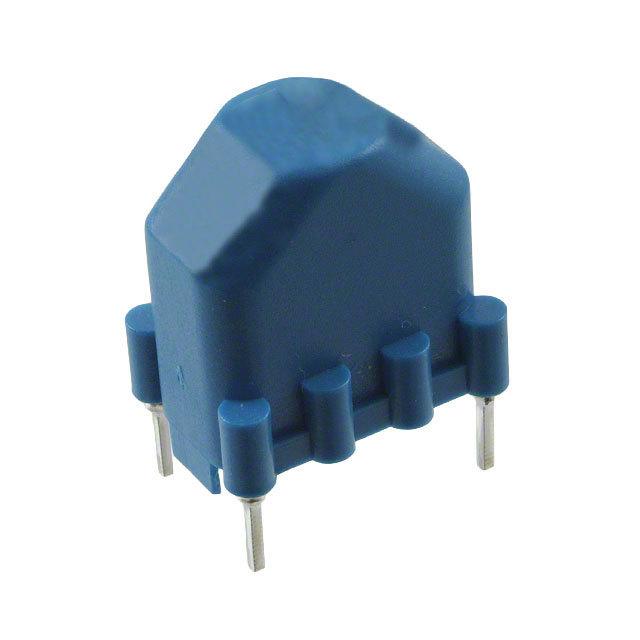

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

B82721K2701N20
Manufacturer

Epcos
ChipWorker Part#

CW93774557
Category

Inductor Choke
Package

Vertical, 4 PC Pin
Description

Common Mode Chokes Dual 10mH 10kHz 700mA 550mOhm DCR Thru-Hole Box
Documentation

Datasheet

B82721K2701N20 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

B82721K2701N20 Specifications

Attribute	Attribute Value

Part Number	B82721K2701N20
Manufacturer	Epcos
ChipWorker Part#	CW93774557
Category	Inductor Choke
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Vertical, 4 PC Pin
Voltage Rating (AC)	250 V
Current Rating	700 mA
Flammability Rating	UL 94 V-0
Inductance	10 mH
Resistance	600 mΩ
Shielding	No
Test Frequency	10 kHz
DC Resistance (DCR)	550 mΩ
Current Rating (Max)	700 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 VAC
	expand all
Size-Length	18.2 mm
Size-Width	13.2 mm
Size-Height	20.3 mm
Operating Temperature	-40℃ ~ 125℃
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
