B82789C223N2 - Epcos

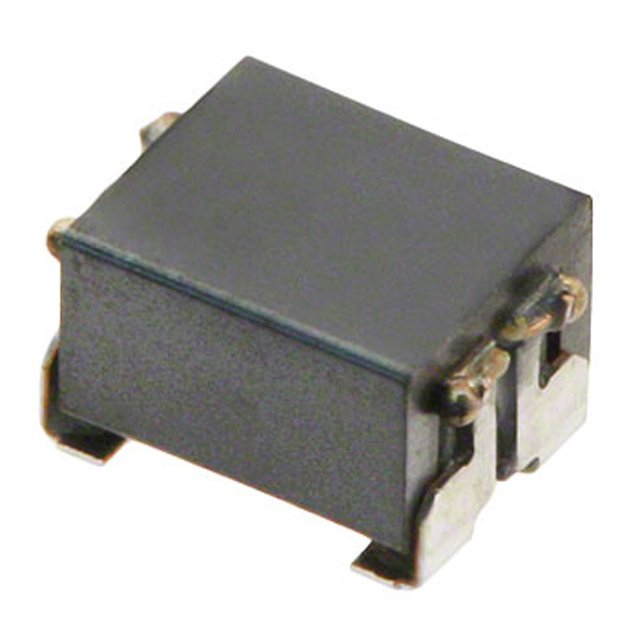

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoB82789C223N2
-
ManufacturerEpcos
-
ChipWorker Part#CW74738216
-
CategoryInductor Choke
-
Package1812
-
DescriptionInd Common Mode Choke 22uH -30% to 50% 100kHz Ferrite 250mA 1812 Blister T/R
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
B82789C223N2 Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
B82789C223N2 Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | B82789C223N2 |
| Manufacturer | Epcos |
| ChipWorker Part# | CW74738216 |
| Category | Inductor Choke |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package (SI) | 4532 |
| Case/Package | 1812 |
| Voltage Rating (DC) | 80 V |
| Voltage Rating (AC) | 42 V |
| Current Rating | 0.25 A |
| Inductance | 22 µH |
| Resistance | 500 mΩ |
| Test Frequency | 100 kHz |
| Current Rating (Max) | 250 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating | 42 VAC |
| Resistance (DC Max) | 580 mΩ |
| expand all | |
| Size-Length | 4.5 mm |
| Size-Width | 3.2 mm |
| Size-Height | 3 mm |
| Weight | 25.0 g |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | End of Life |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
Product Description
- Construction ■ Current-compensated double choke with ferrite I core ■ Bifilar winding (B82789C0…) ■ Sector winding (B82789S0…) Features ■ Suitable for reflow soldering ■ For gold-plated terminals conductive adhesion possible Function ■ B82789C0: Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly ■ B82789S0: Suppression of asymmetrical (by LR) and symmetrical interference (by LS) coupled in on lines. The high-frequency portions of the symmetrical data signal are decreased so far that EMC problems can be significantly reduced Applications ■ Automotive applications, e.g. CAN bus ■ Industrial automation ■ Telecommunications
