BAS21SW - NXP

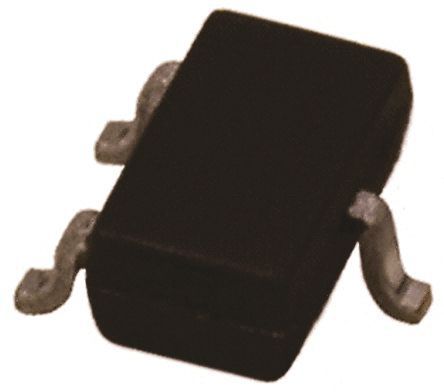

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BAS21SW
Manufacturer

NXP
ChipWorker Part#

CW104109003
Category

Small Signal Diode
Package

SOT-323
Description

NXP BAS21SW Small Signal Diode, Dual Series, 225mA, 1.25V, 50ns, 9A
Documentation

Datasheet

BAS21SW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BAS21SW Specifications

Attribute	Attribute Value

Part Number	BAS21SW
Manufacturer	NXP
ChipWorker Part#	CW104109003
Category	Small Signal Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-323
Number of Positions	3 Position
Reverse recovery time	50 ns
Forward Current	225 mA
Max Forward Surge Current (Ifsm)	9 A
Maximum Forward Voltage (Max)	1.25 V
Forward Current (Max)	225 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1.1 mm
Operating Temperature	-55℃ ~ 155℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The BAS21SW is a high-speed Switching Diode encapsulated in a very small surface-mounted device (SMD) plastic package. It is used for high-speed switching, voltage clamping, reverse polarity protection and general purpose switching.
* * Low leakage current
AEC-Q101 qualified

expand all
