BD08AV - C&K Components

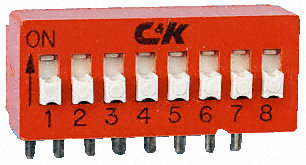

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoBD08AV
-
ManufacturerC&K Components
-
ChipWorker Part#CW9687782
-
CategoryDIP Switch, SIP Switch
-
PackageDIP
-
DescriptionC & K COMPONENTS BD08AV DIP / SIP Switch, 8Circuits, SPST, Through Hole, BD Series, DIP Unsealed, 24VDC
-
DocumentationDatasheet
