BF550 - NXP

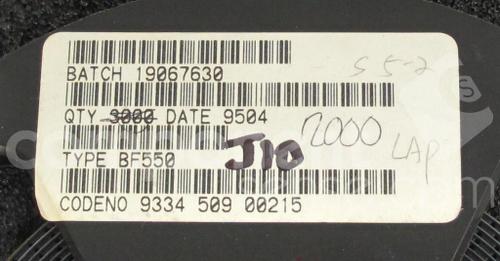

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BF550
Manufacturer

NXP
ChipWorker Part#

CW75084815
Category

BJT Transistor, BJT
Package

SOT-23
Description

TO-236AB PNP 40V 0.025A
Documentation

Datasheet

BF550 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BF550 Specifications

Attribute	Attribute Value

Part Number	BF550
Manufacturer	NXP
ChipWorker Part#	CW75084815
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23
Number of Positions	3 Position
Polarity	PNP
Power Dissipation	250 mW
Breakdown Voltage (Collector to Emitter)	40 V
Continuous Collector Current	0.025A
DC Current Gain (hFE)	50
Operating Temperature (Max)	150 ℃
	expand all
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
REACH SVHC Compliance Edition	2015/12/17
