BLM15AX100SN1D - muRata

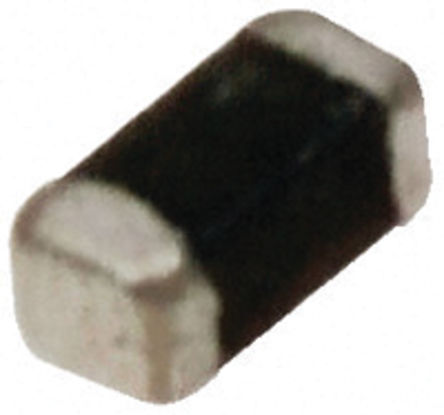

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BLM15AX100SN1D
Manufacturer

muRata
ChipWorker Part#

CW244744
Category

Ferrite
Package

0402
Description

MURATA BLM15AX100SN1D Ferrite Bead, 10Ω, 0402 [1005 Metric], BLM15AX_SN Series, 1.74A, 0.015Ω, ± 5Ω
Documentation

Datasheet

BLM15AX100SN1D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BLM15AX100SN1D Specifications

Attribute	Attribute Value

Part Number	BLM15AX100SN1D
Manufacturer	muRata
ChipWorker Part#	CW244744
Category	Ferrite
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1005
Case/Package	0402
Current Rating	1.74 A
Number of Circuits	1 Circuit
Resistance	10.0 Ω
Impedance	10.0 Ω
Test Frequency	100 MHz
DC Resistance (DCR)	≤20 mΩ
Current Rating (Max)	1.74 A
Current Rating (DC)	1.74 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	15 mΩ
	expand all
Size-Length	1.05 mm
Size-Width	0.55 mm
Size-Height	0.55 mm
Material	Ferrite
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	10000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

10 Ohms @ 100MHz 1 Ferrite Bead 0402 (1005 Metric) 1.74A 15mOhm
