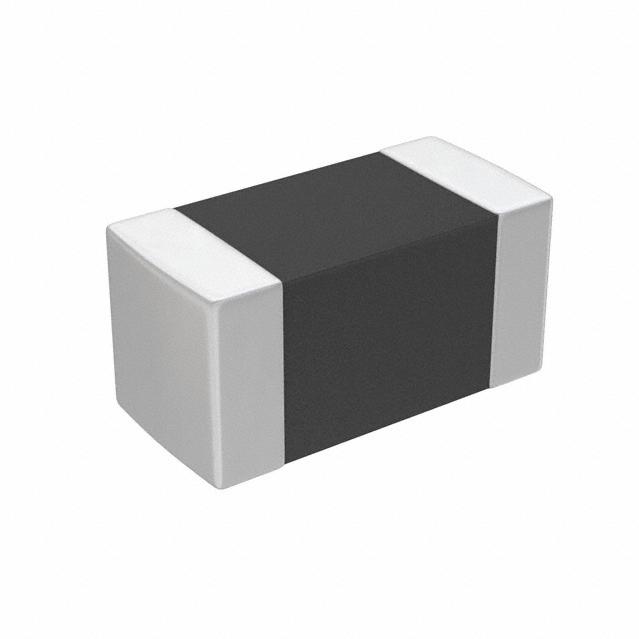

BLM15BX102SN1D - muRata

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BLM15BX102SN1D
Manufacturer

muRata
ChipWorker Part#

CW56183896
Category

Ferrite
Package

0402
Description

Ferrite Beads Multi-Layer 1KΩ 25% 100MHz 300mA 650mOhm DCR 0402 T/R
Documentation

Datasheet

BLM15BX102SN1D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BLM15BX102SN1D Specifications

Attribute	Attribute Value

Part Number	BLM15BX102SN1D
Manufacturer	muRata
ChipWorker Part#	CW56183896
Category	Ferrite
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	0402
Number of Circuits	1 Circuit
Resistance	1.00 kΩ
Impedance	1.00 kΩ
Test Frequency	100 MHz
DC Resistance (DCR)	0.65 Ω
Current Rating (Max)	300 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	650 mΩ
	expand all
Size-Length	1 mm
Size-Width	0.5 mm
Size-Height	0.55 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	10000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

1 kOhms @ 100MHz 1 Signal Line Ferrite Bead 0402 (1005 Metric) 300mA 650mOhm
