BLM18PG121SN1D - muRata

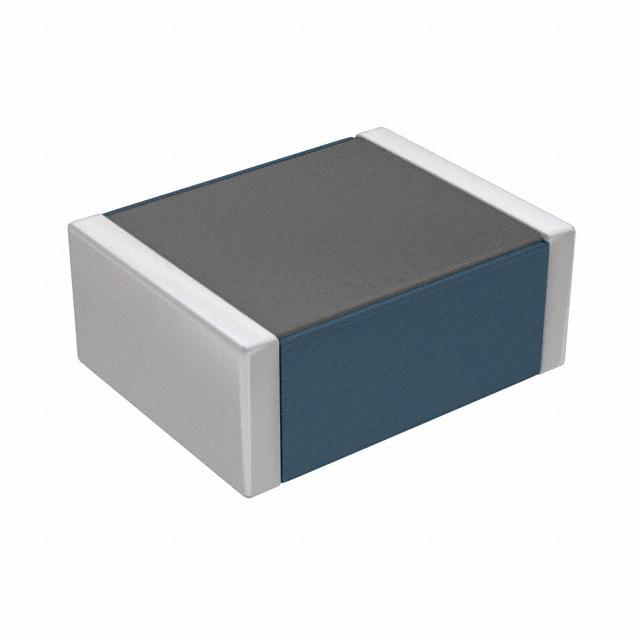

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BLM18PG121SN1D
Manufacturer

muRata
ChipWorker Part#

CW16391
Category

Ferrite
Package

0603
Description

Ferrite Bead, 120Ω, 0603 [1608 Metric], BLM18P Series, 2A, 0.05Ω, ± 25%
Documentation

Datasheet

BLM18PG121SN1D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BLM18PG121SN1D Specifications

Attribute	Attribute Value

Part Number	BLM18PG121SN1D
Manufacturer	muRata
ChipWorker Part#	CW16391
Category	Ferrite
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1608
Case/Package	0603
Frequency	100 MHz
Current Rating	2 A
Number of Circuits	1 Circuit
Resistance	50.0 mΩ
Shielding	No
Impedance	120 Ω
Test Frequency	100 MHz
DC Resistance (DCR)	≤50 mΩ
Current Rating (Max)	2 A
Current Rating (DC)	2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±25 %
Resistance (DC Max)	50 mΩ
	expand all
Size-Length	1.6 mm
Size-Width	0.8 mm
Size-Height	0.95 mm
Material	Ferrite
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	4000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR

Product Description

The Murata BLM18PG series are EMIFIL chip ferrite beads for suppressing high frequency noise in power line application. These chip ferrite beads are designed for reducing the possibility of resonance to provide undistorted signal waveform. EMIFIL chip ferrite beads do not require connection to ground so they are effectively used in circuits without stable ground lines. The nickel barrier structure of the external electrodes provides excellent solder heat resistance. BLM18PG series can be used in high current circuits due to its low DC resistance and can match power lines to a maximum of 6A DC.
EIA 0603 standard chip size
Miniaturized ferrite beads
Effective at low impedance line
Available in selective impedance range values at 100MHz
Operating temperature range -55°C to 125°C
