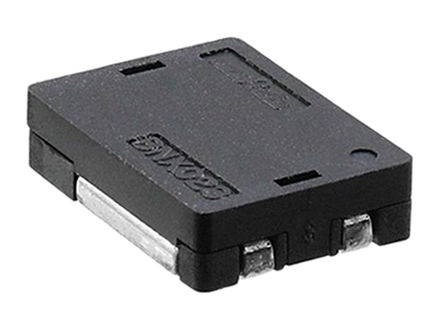

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BNX026H01L
Manufacturer

muRata
ChipWorker Part#

CW312520
Category

Filter
Package

SMD-4
Description

MURATA BNX026H01L Power Line Filter, 10µF, 50VDC, 15A, EMI, RFI, SMD
Documentation

Datasheet

BNX026H01L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BNX026H01L Specifications

Attribute	Attribute Value

Part Number	BNX026H01L
Manufacturer	muRata
ChipWorker Part#	CW312520
Category	Filter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SMD-4
Voltage Rating (DC)	50.0 V
Current Rating	15 A
Capacitance	10 µF
Number of Channels	2 Channel
Current Rating (Max)	15 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating (Max)	50 VDC
Voltage Rating	50 VDC
	expand all
Size-Length	12.1 mm
Size-Width	9.1 mm
Size-Height	3.5 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The BNX026H01L is a 15A SMD EMI Suppression Filter with for automotive electronics.
10MR Insulation resistance
35dB Minimum insertion loss
45mV Maximum voltage drop
