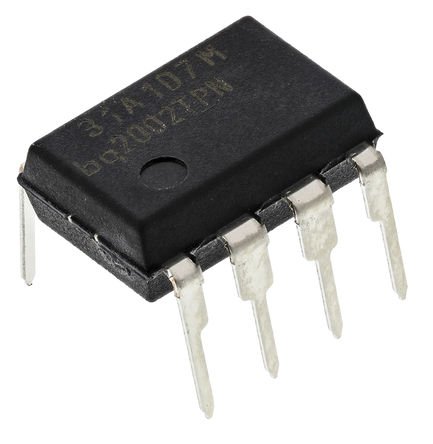

BQ2002TPN - TI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BQ2002TPN
Manufacturer

TI
ChipWorker Part#

CW41216940
Category

Battery Management IC
Package

PDIP-8
Description

Battery Charger for NiCd, NiMH battery, 6V input, 2A charge, DIP-8
Documentation

Datasheet

BQ2002TPN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BQ2002TPN Specifications

Attribute	Attribute Value

Part Number	BQ2002TPN
Manufacturer	TI
ChipWorker Part#	CW41216940
Category	Battery Management IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	7.00 V
Input Voltage (DC)	6.00 V
Output Current	2 A
Output Voltage (Max)	2 V
Output Current (Max)	10 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4 V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	4 V
Input Voltage	6 V
	expand all
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99

Product Description

General Description
The bq2002D/T Fast-Charge IC are low-cost CMOS battery-charge control lers able to provide reliable charge termination for both NiCd and NiMH bat tery applications. Controlling a current-limited or constant-current supply allows the bq2002D/T to be the basis for a cost-effective stand-alone or system-integrated charger. The bq2002D/T integrates fast charge with optional top-off and pulsed-trickle con trol in a single IC for charging one or more NiCd orNiMH battery cells.
